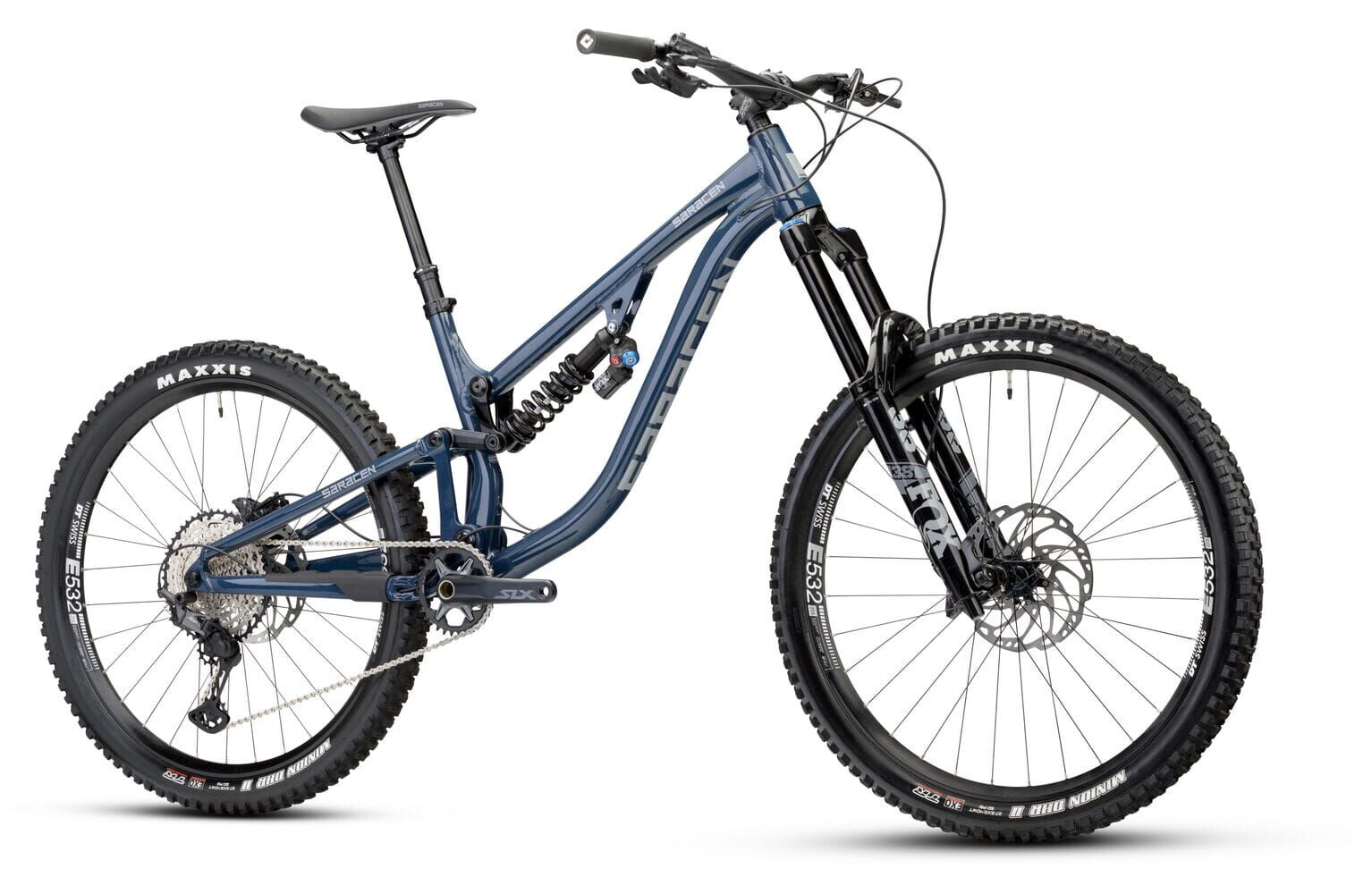

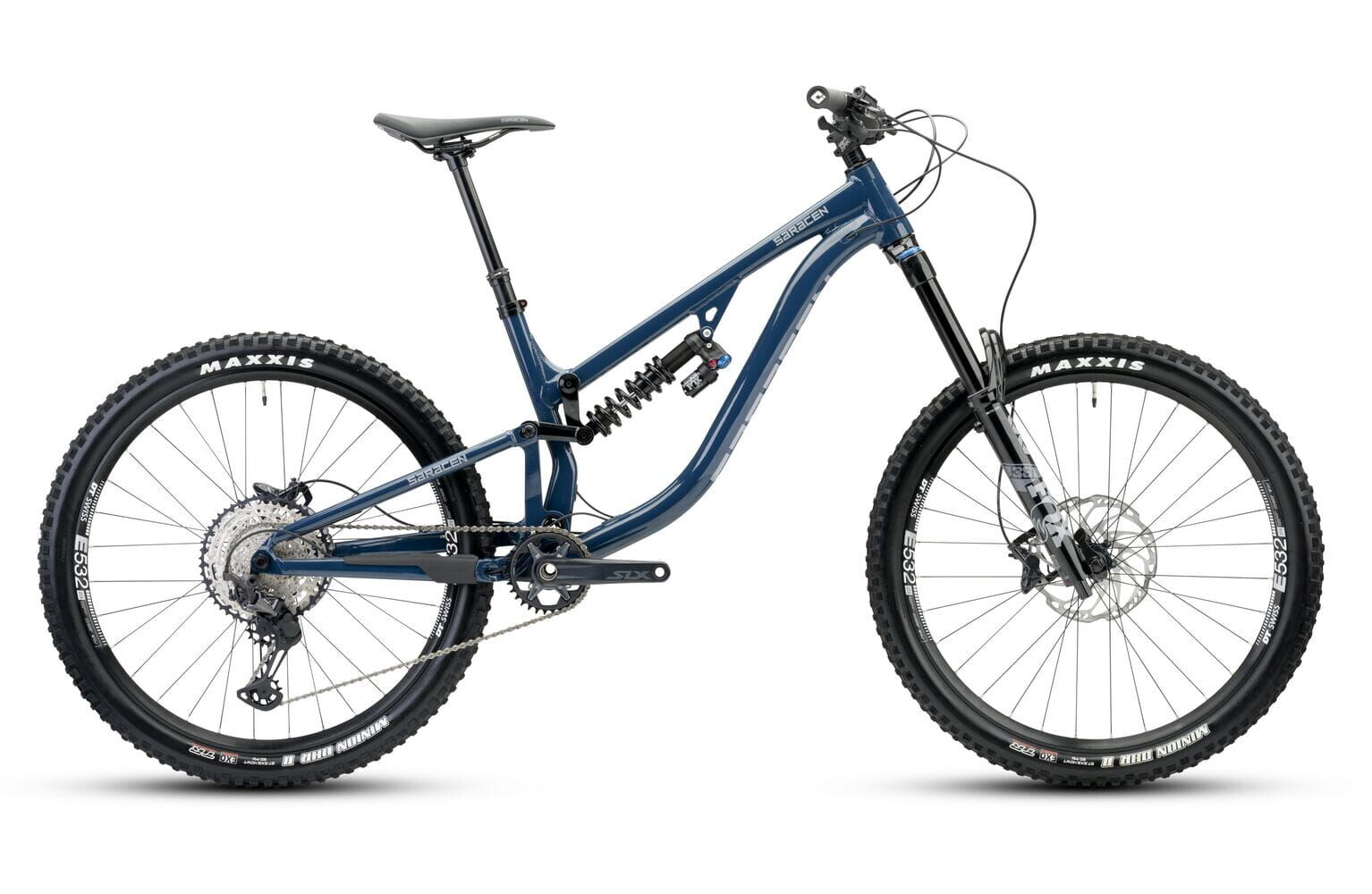

Saracen Ariel 80 Pro
In stock
£3,499.99
£2,499.99
More from
Saracen Ariel 80 Pro
Let?s get loose.
If you live for laps, destroy rear tyres and always send it sideways, you?re going to want the Ariel 80.
Fun first and 27.5 for life ? our take on a park bike is designed to thrive at every UK centre and even in the Alps.
This bike loves to pop off lips, swing sideways and flick through trees. The bigger the grin on your face, the harder the Ariel 80 works to keep it there.
Our all-new custom-butted and hydroformed 6013 aluminium frame has been put through its paces by bottom-out king Matt Walker and survived to make it into production.
Every millimetre of the 180mm travel is designed to work hard, whether that?s smoothing out rock chatter and braking bumps, sending jump lines, or holding traction through loose turns.
The 80 Pro gets a dialled spec sheet for hard charging out on the trails. A Fox DHX2 Performance shock is matched to the Fox 38 Performance Elite fork, delivering full adjustability for precise setup on any terrain.

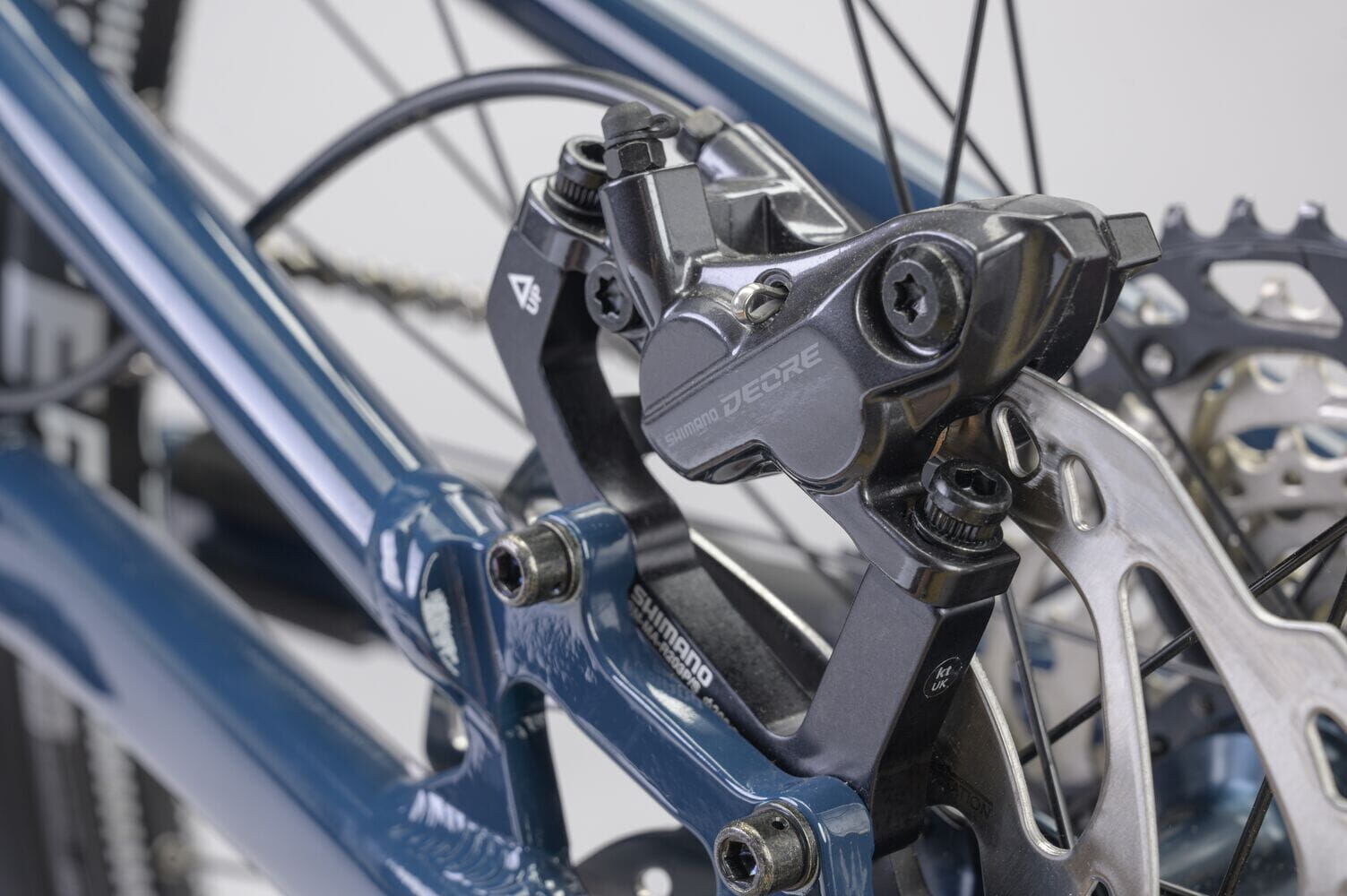

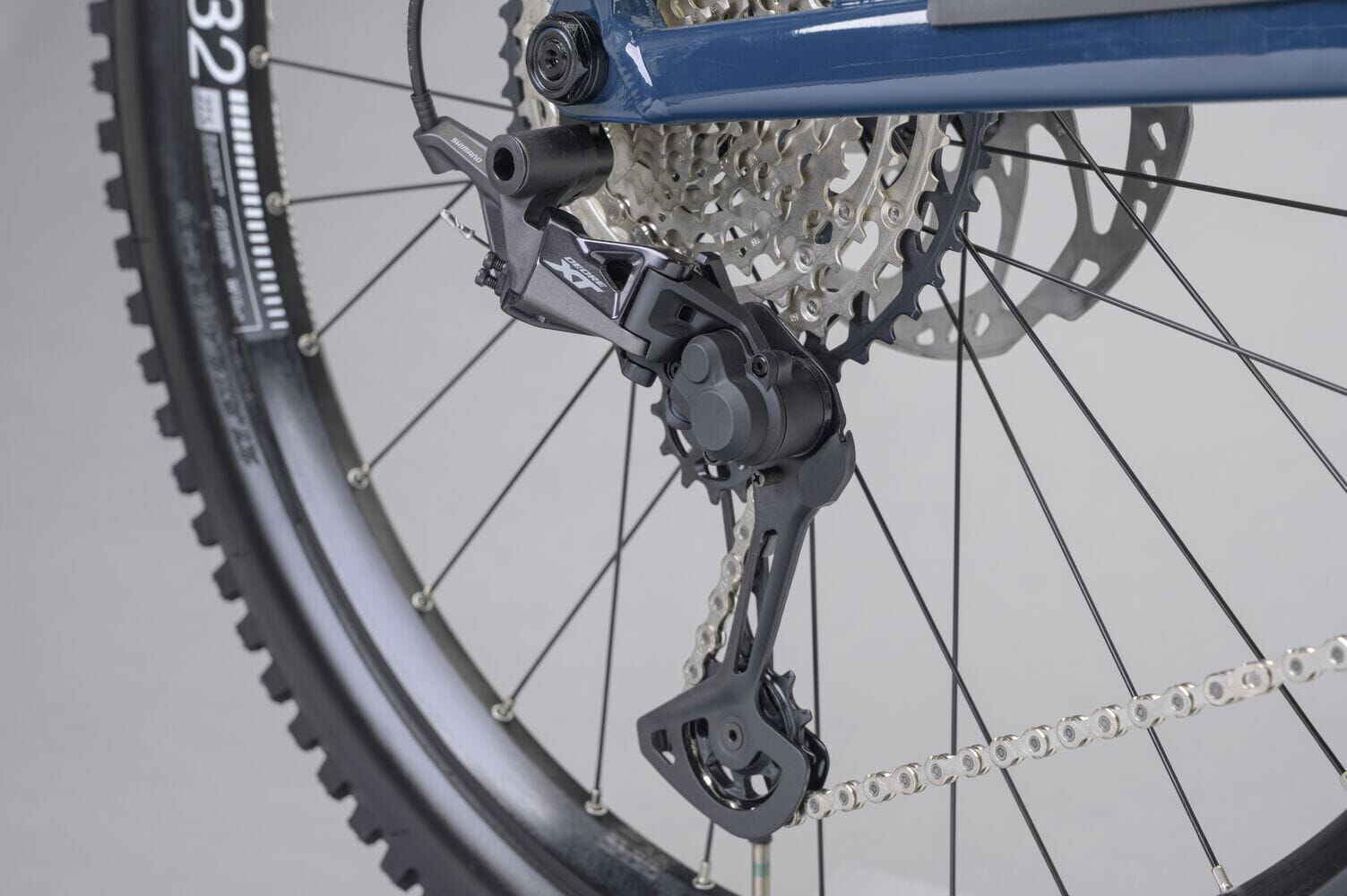

The latest Shimano SLX drivetrain provides crisp shifting, with an XT rear derailleur covering the wide 11?51 cassette range. Four-piston Deore brakes bring strong, reliable stopping power to the party.

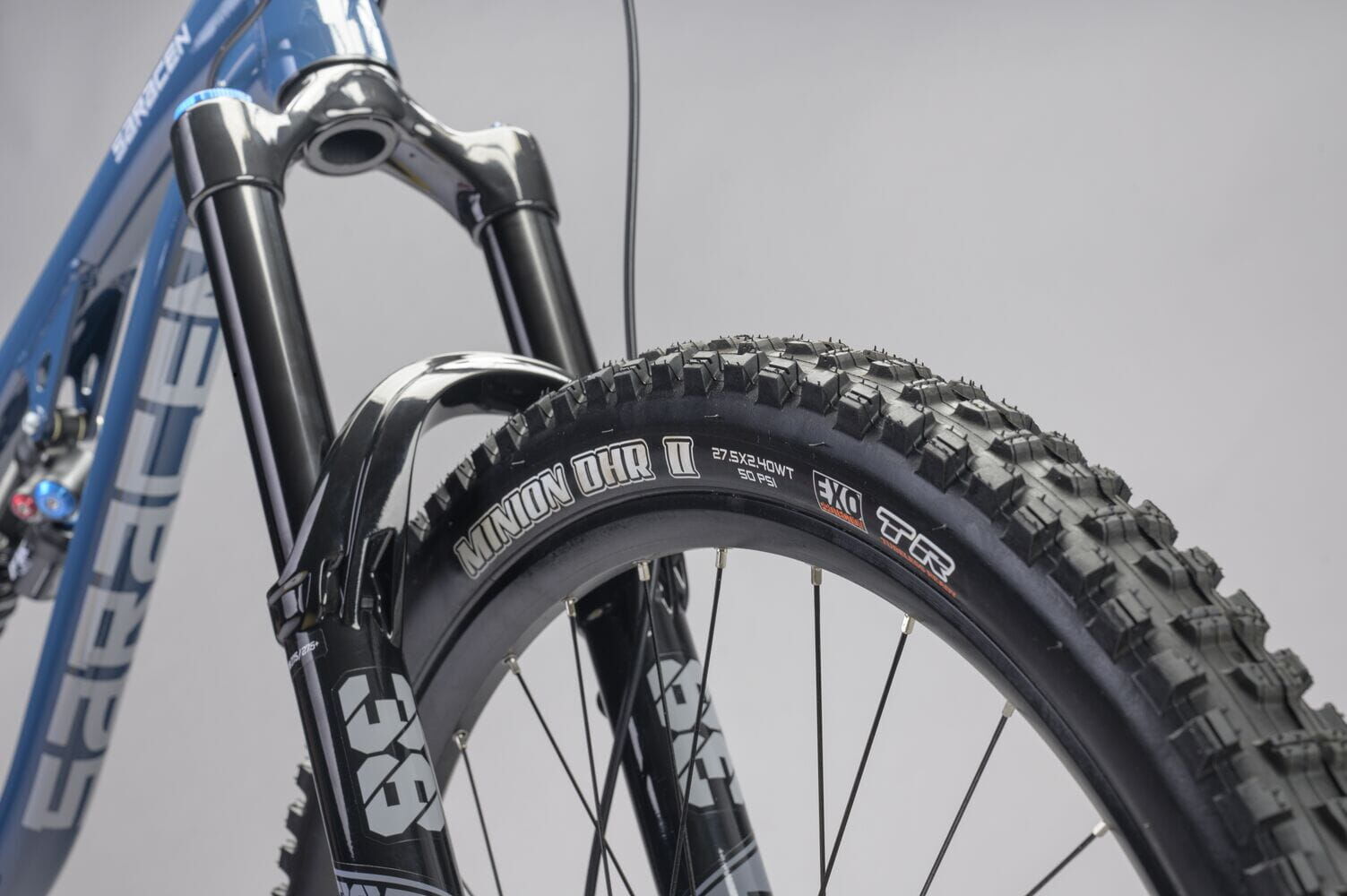

DT Swiss E532 rims are enduro ready, with a 30mm internal width that gives the Maxxis Minion DHRII tyres the support they need. Both are tubeless ready ? just add tape, valves and sealant.
RaceFace 35mm finishing kit and a KS dropper post complete a spec sheet with no weak points ? and that?s before you get into the small details.
There?s internal routing for everything ? including the dropper post ? superboost spacing for extra clearance, and large bearings designed for long service life and easy maintenance.
Just don?t try to stick a 29er fork up front. You?ll set off our inbuilt safety system that alerts everyone on Pinkbike to the crimes you?re committing.
Please note - this bike does not come supplied with pedals. Choose some here!
Bottom Bracket :
Shimano BB-MT800 / 73mm
Brake Levers :
Shimano SLX M7100
Brakes :
Shimano SLX M7120 203/203mm
Cassette Freewheel :
Shimano M7100 / 12 speed / 10-51T
Chain :
KMC X12
Chain Set :
Shimano SLX FC-M7130 / 32T / 170mm / 56.5mm CL
Handlebars :
Raceface Atlas 35 / 820mm Wide / 35mm Rise / 35mm Clamp Diameter
Headset :
Prestine PT-F13
Hubs :
Shimano HB-M7110 32h 15 x 110 Front / Shimano FH-M7130 32h 12 x 157 Rear / Centre-Lock rotor fixing
Rear Derailleur :
Shimano XT M8100 / 12 Speed
Rear Shock :
Fox Float DHX2 Performance / 2 position adjust / 250 x 70
Rear Suspension Travel :
180 mm
Rims :
DT Swiss E532 / 32H / 27.5
Saddle :
Saracen Custom CrMo MTB
Seat Post :
KS Rage I / 170mm travel (150mm on S size) / internal cable routing / 30.9mm / Westy Remote
Shifters :
Shimano SLX M7100 / 1 x 12 Speed
Spokes :
Double-butted stainless steel
Stem :
Raceface Chester 35 / 40mm / A Head / 0 Degree Rise / 35mm Clamp
Tyres :
Maxxis Minion DHRII / EXO / TR / 27.5 x 2.4
Wheel Size :
27.5 inch
Fork :
Fox 38 Performance Elite / 180mm travel / tapered steerer / HSC LSC HSR LSR Adjust / Grip 2 Damper / 15x110 Boost / 44mm Rake
Frame Material :
Alloy
Brake Type :
Hydraulic Disc
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
SMALL
- 154 to 172
MEDIUM
- 170 to 180
LARGE
- 178 to 186
X-LARGE
- 184 to 196
| Frame Size | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| Stem Length plus Reach | ||||
| Frame Seat Tube | 360 | 360 | 410 | 460 |
| Frame Top Tube | 580 | 607 | 635 | 663 |
| Frame Reach | 435 | 460 | 485 | 510 |
| Frame Stack | 602 | 610 | 624 | 637 |
| Frame Head Tube | 100 | 110 | 125 | 140 |
| Frame Head Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| Frame Seat Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Frame Chainstay | 438 | 438 | 438 | 438 |
| Frame BB Drop | 14 | 14 | 14 | 14 |
| Frame Wheel Base | 1207 | 1236 | 1268 | 1300 |
| Fork Offset | ||||
| Fork Travel | ||||
| Standover | 735 | 745 | 736 | 736 |
| Stem Length | ||||
| Handle Bar Width |
| Frame Size | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| Stem Length plus Reach | ||||
| Frame Seat Tube | 360 | 360 | 410 | 460 |
| Frame Top Tube | 580 | 607 | 635 | 663 |
| Frame Reach | 435 | 460 | 485 | 510 |
| Frame Stack | 602 | 610 | 624 | 637 |
| Frame Head Tube | 100 | 110 | 125 | 140 |
| Frame Head Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| Frame Seat Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Frame Chainstay | 438 | 438 | 438 | 438 |
| Frame BB Drop | 14 | 14 | 14 | 14 |
| Frame Wheel Base | 1207 | 1236 | 1268 | 1300 |
| Fork Offset | ||||
| Fork Travel | ||||
| Standover | 735 | 745 | 736 | 736 |
| Stem Length | ||||
| Handle Bar Width |
