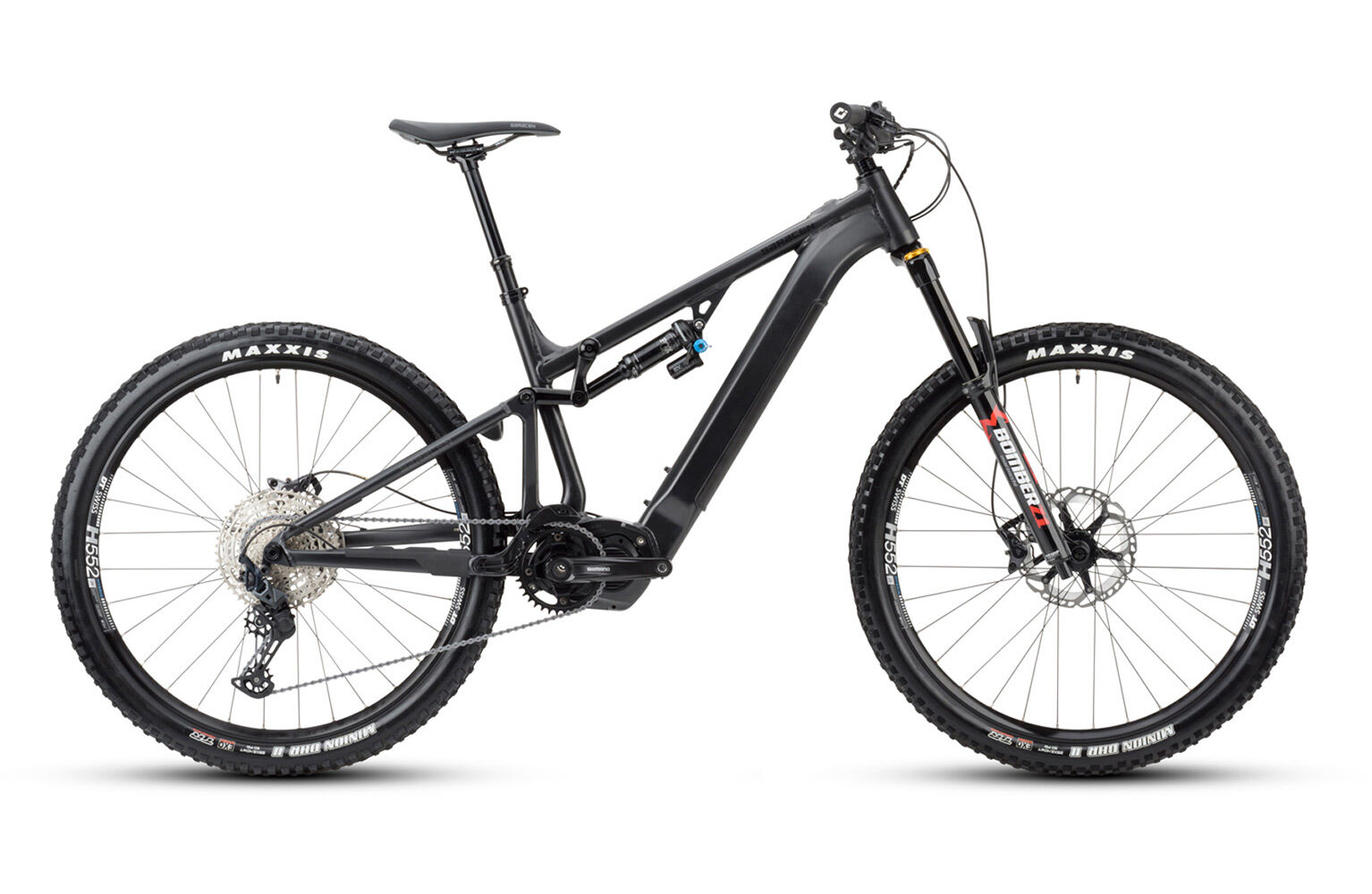

Saracen Ariel 50-E
Out of stock
Was
£4,499.99
Now
£3,999.99
More from
Saracen Ariel 50-E

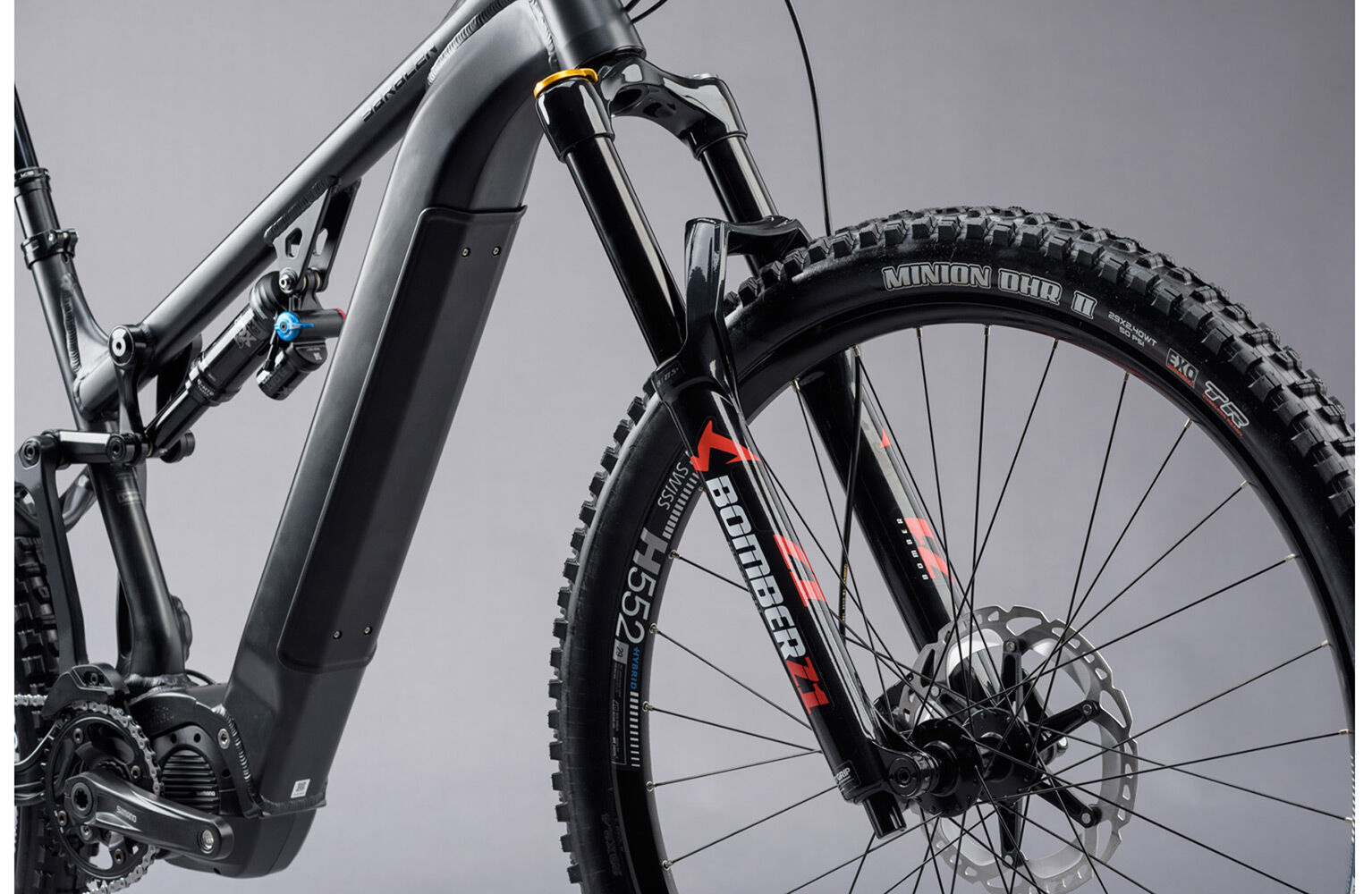

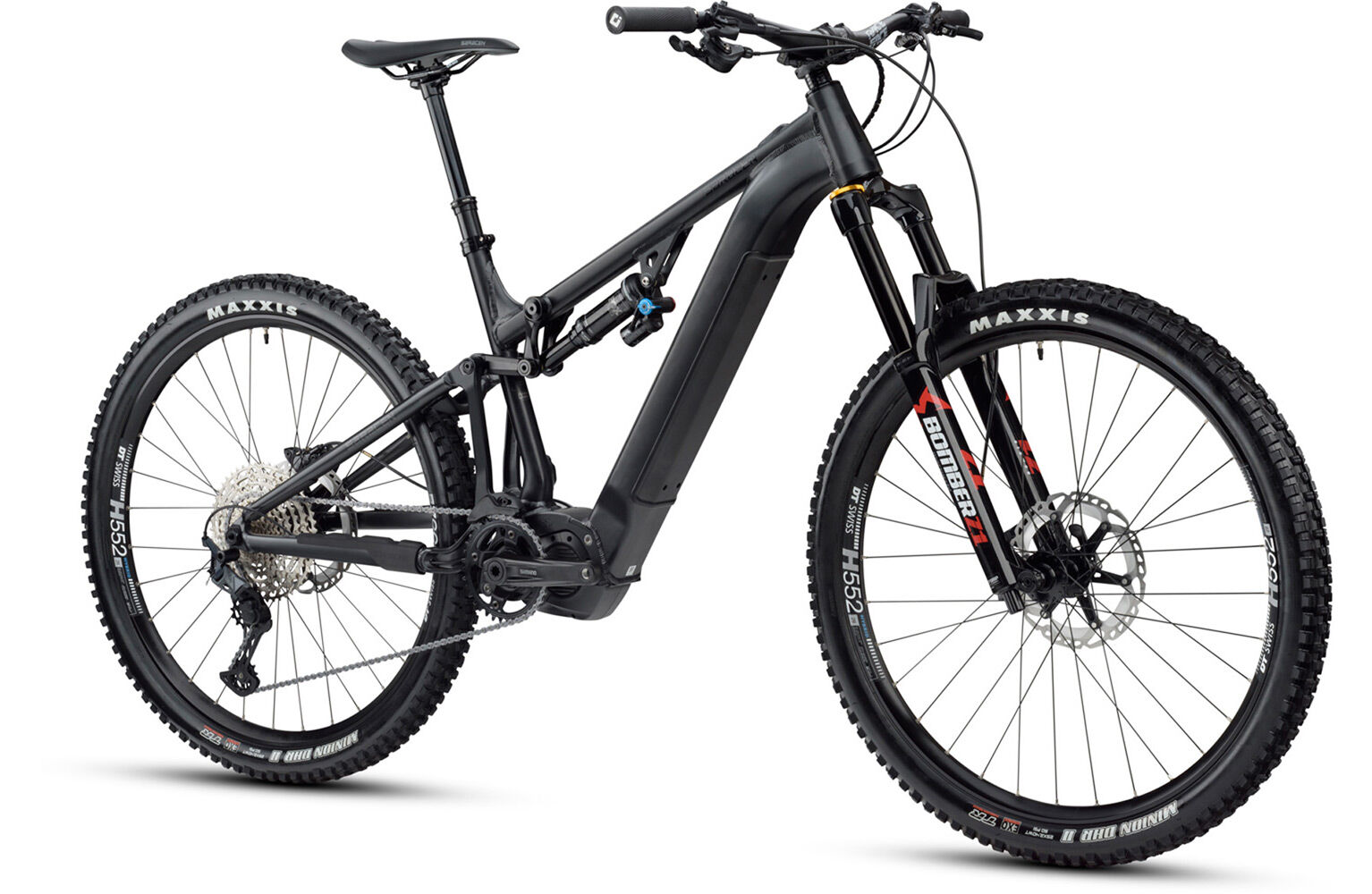

The Ariel 50E says yes. Yes to that extra loop, yes to that impossible climb and yes to every kind of trail. Designed to take on the best British mountain biking, the Ariel is built for everything from all day epics, to trail centre laps. The all-aluminium frame features 150mm travel provided by a capable Fox DPX2 Performance shock, while up front a 160mm Marzocchi Bomber Z1 handles the heaviest of hits.

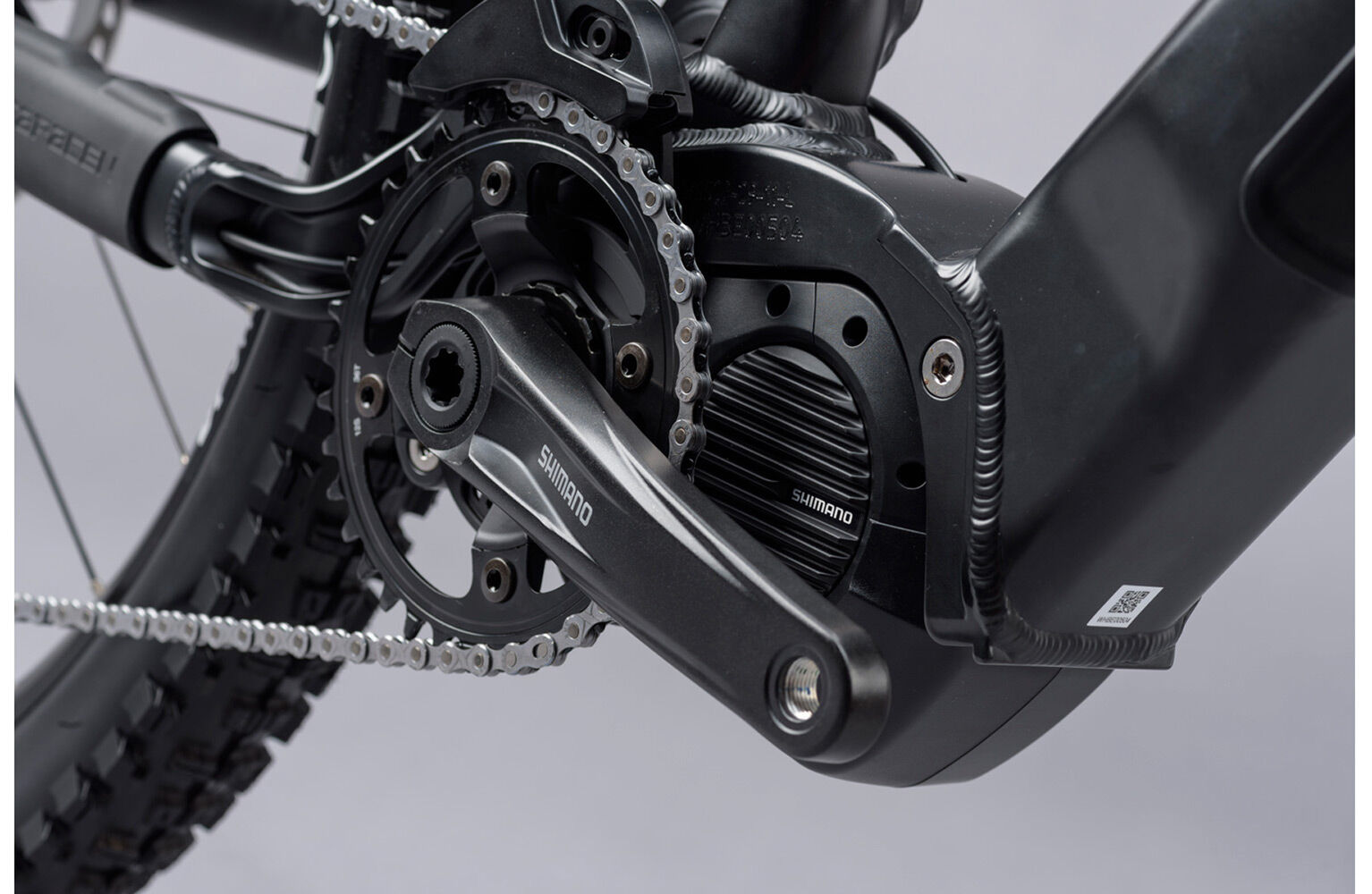

Shimano's E7000 drive unit provides 250-watts of assistance, delivered with 60Nm of torque. What this delivers is an extremely flexible motor, that has the power to propel you over the toughest terrain, while delivering impressive run times in conjunction with the integrated 504Wh battery.
Along with the preset modes, you can also customise boost and trail settings within Shimano's E-tube app, allowing you to match the support you receive with the terrain and your riding style.

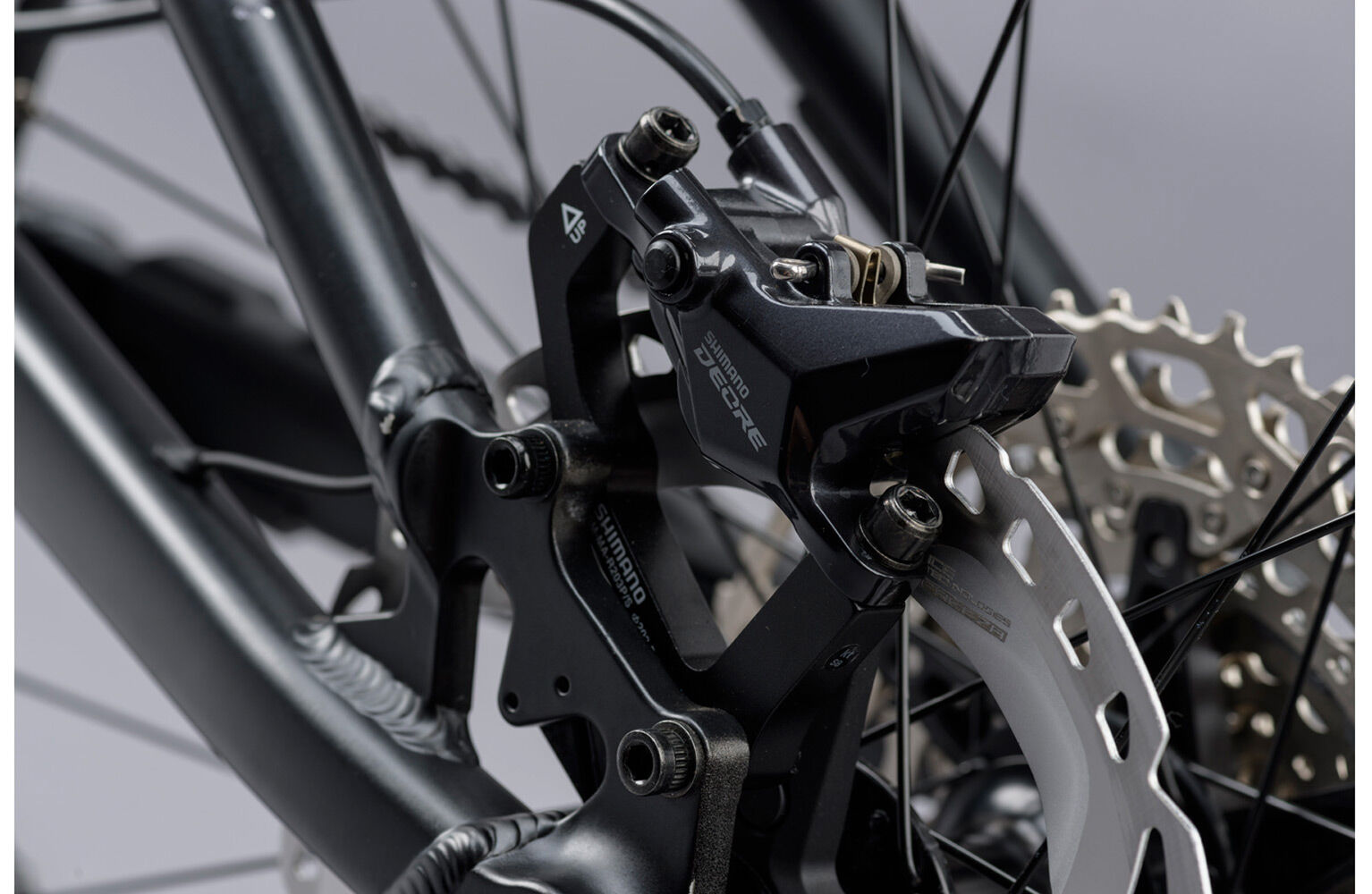

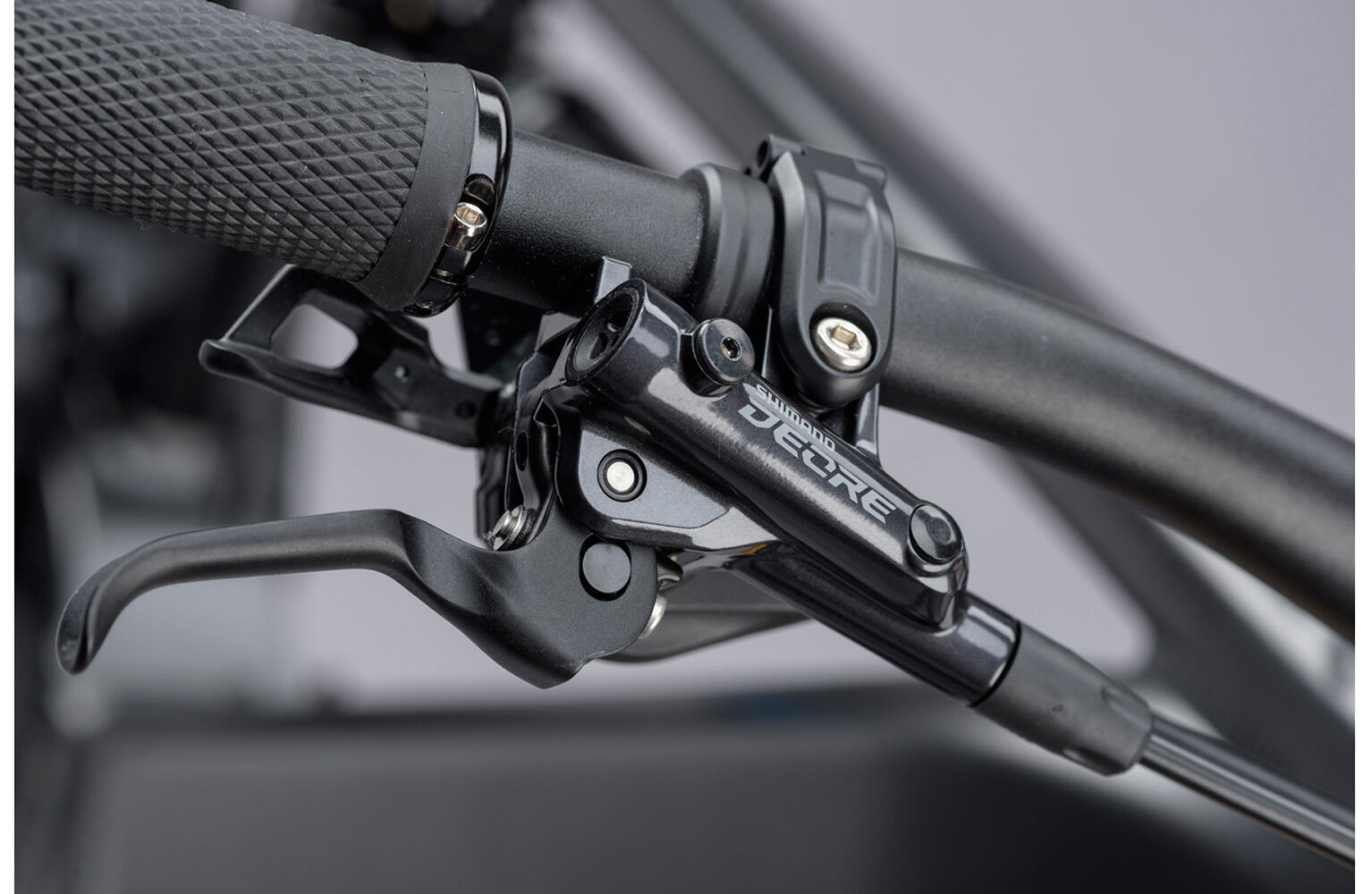

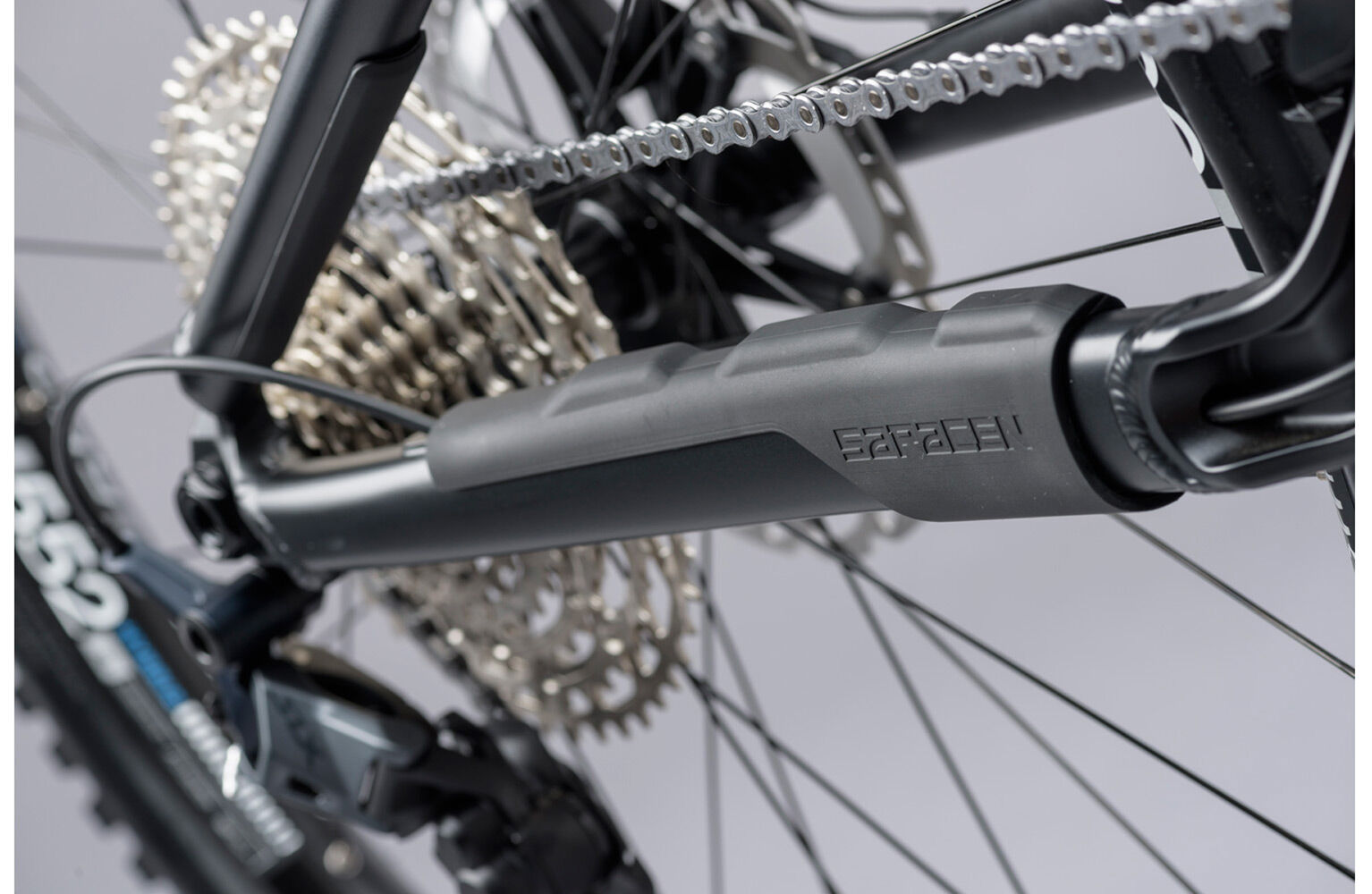

The drivetrain is provided with a mix of Shimano's capable Deore and SLX components, while braking is handled by two-piston Deore callipers matched to 203mm rotors for extra stopping power. DT Swiss HX552 feature a 30mm internal perfectly supporting the Maxxis Minion DHRII tyres. Our small and medium bikes come with mixed wheel size, while the large and extra large utilise the full 29er setup. RaceFace components finish the build, matched to a KS Rage 150mm dropper post.
Battery Type :
Fully intergrated BT-E8035 / 504Wh
Bottom Bracket :
N/A (Built into Motor)
Max Tyre Size :
29 x 2.6
Brakes :
Shimano M6100 203/203mm
Cassette Freewheel :
Shimano M6100 / 12 speed / 10-51T
Chain :
KMC E12
Chain Set :
Shimano XT FC-E8000 / 34T / 165mm
Charger :
Shimano STEPS EC-E6000
Handlebars :
Raceface Chester 35 / 780mm Wide / 35mm Rise / 35mm Bar Bore
Headset :
Prestine PT-F13
Hubs :
KT DHLF1L2 sealed bearing 32h 15 x 110 Front / KT DCR2S5 sealed bearing 32h 12 x 157 Rear / Centre-Lock rotor fixing
Motor :
Shimano E-7000 / Mid ship position / assistance up to 25Km/h
Rear Derailleur :
Shimano SLX M7100 / 12 Speed

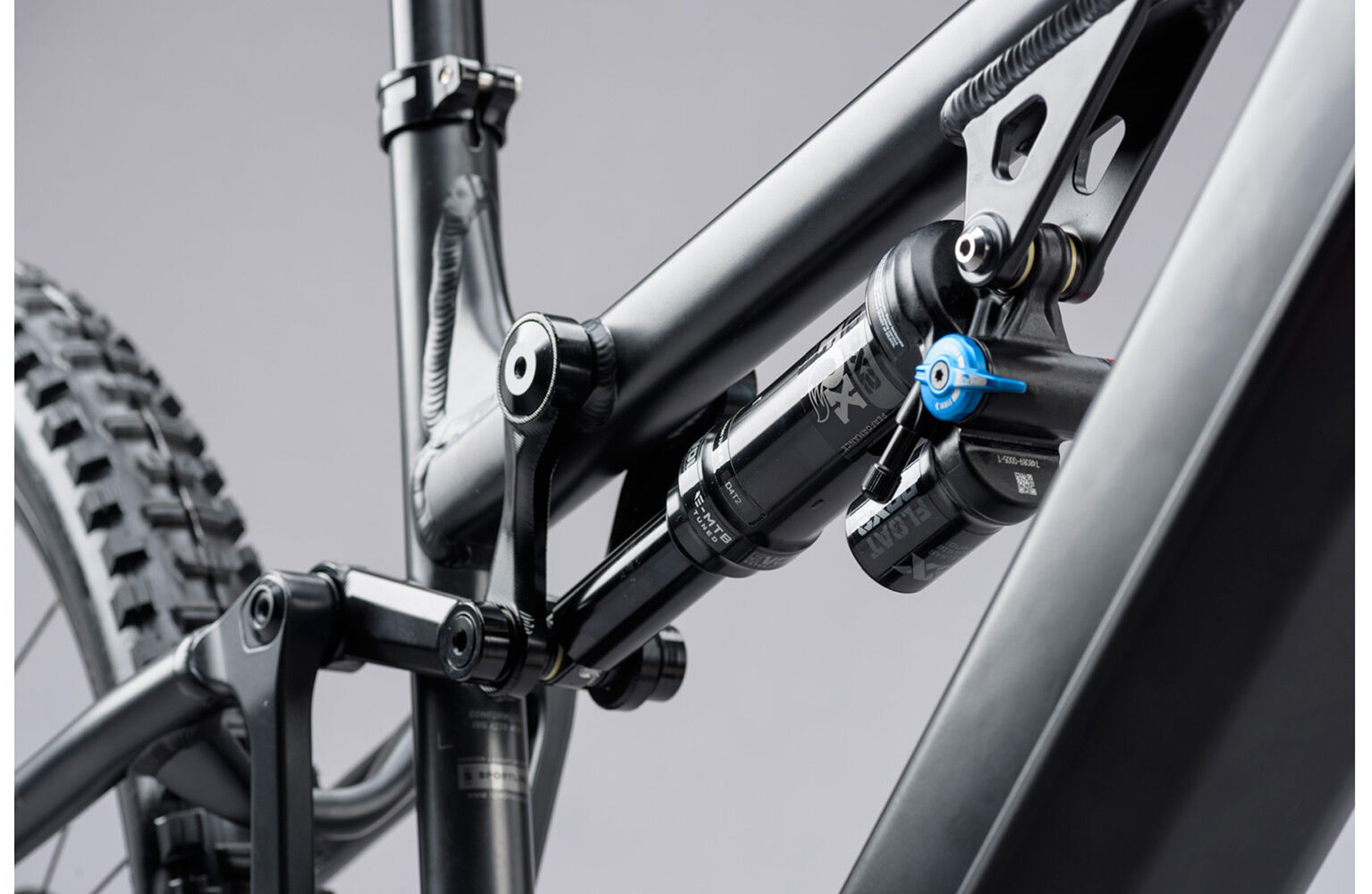

Rear Shock :
Fox Float DPX2 Performance / EVOL / 3 position adjust / 230 x 65
Rear Suspension Travel :
150 mm
Rims :
DT Swiss H552 / 32H / 29" Front / 29" Rear (Sizes LG / XL) 29" Front / 27.5" Rear (Sizes SM / MD)
Saddle :
Saracen Custom CrMo MTB
Seat Post :
KS Rage I / 150mm travel / internal cable routing / 30.9mm / Westy Remote (125mm on S size)
Shifters :
Shimano Deore M6100 / 1 x 12 Speed
Spokes :
Double-butted stainless steel
Stem :
Raceface Chester 35 / 40mm / A Head / 0 Degree Rise / 35mm Clamp
Tyres :
Maxxis Minion DHRII / EXO / TR / 29 x 2.4 Front & Rear (Sizes LG / XL) / 29 x 2.4 Front / 27.5 x 2.4 Rear (Sizes SM / MD)

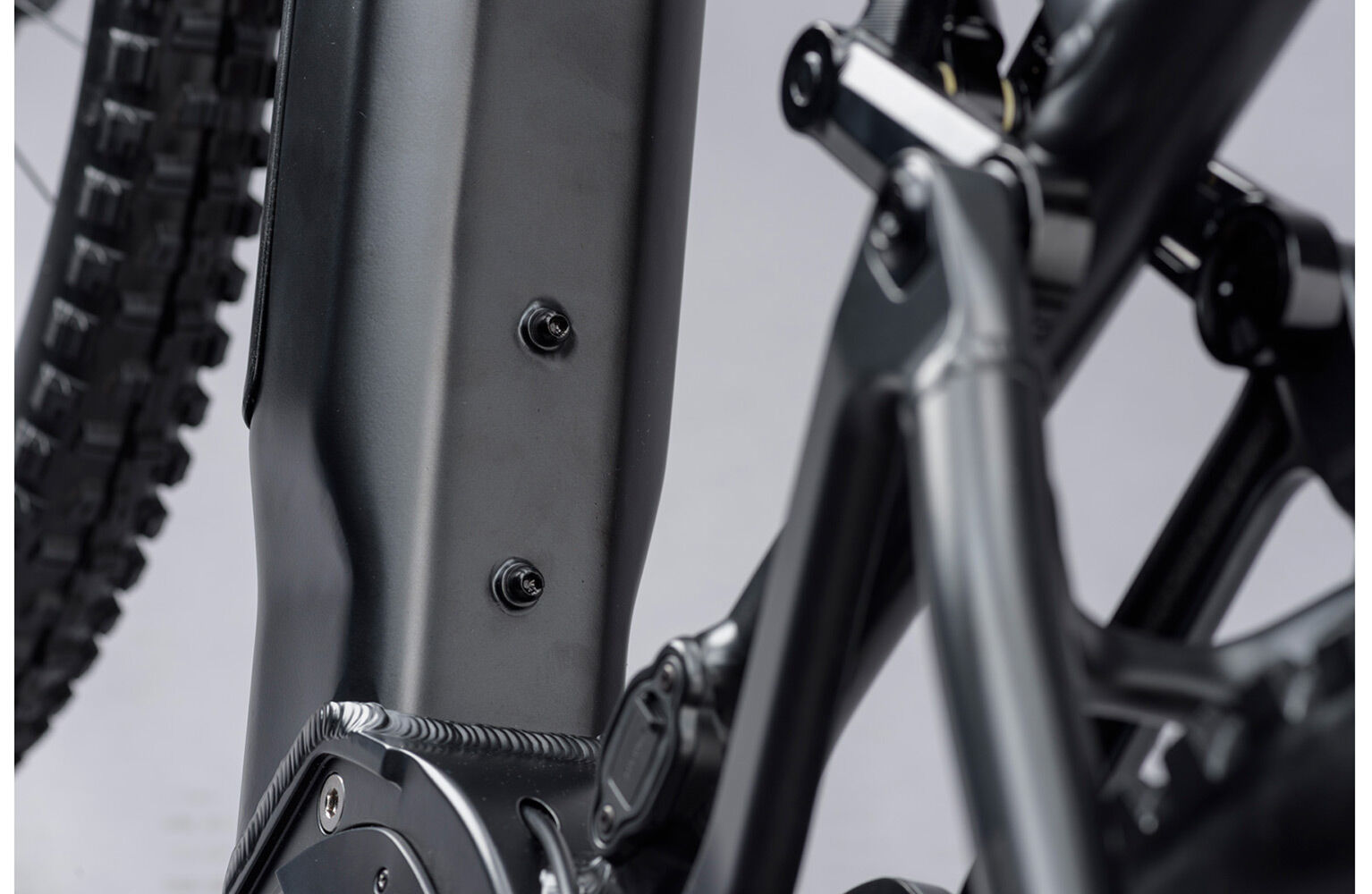

Battery Integration :
Internal
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
SMALL
- 154 to 172
MEDIUM
- 170 to 180
LARGE
- 178 to 186
X-LARGE
- 184 to 196
| Frame Size | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| Stem Length plus Reach | ||||
| Frame Seat Tube | 370 | 410 | 460 | 510 |
| Frame Top Tube | 612 | 637 | 665 | 688 |
| Frame Reach | 455 | 480 | 505 | 525 |
| Frame Stack | 632 | 632 | 641 | 655 |
| Frame Head Tube | 115 | 115 | 125 | 140 |
| Frame Head Angle | 65° | 65° | 65° | 65° |
| Frame Seat Angle | 76° | 76° | 76° | 76° |
| Frame Chainstay | 465 | 465 | 465 | 465 |
| Frame BB Drop | 25 | 25 | 25 | 25 |
| Frame Wheel Base | 1250 | 1275 | 1304 | 1330 |
| Fork Offset | 43 | 43 | 43 | 43 |
| Fork Travel | 160 | 160 | 160 | 160 |
| Standover | 794 | 794 | 793 | 793 |
| Stem Length | ||||
| Handle Bar Width |
| Frame Size | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| Stem Length plus Reach | ||||
| Frame Seat Tube | 370 | 410 | 460 | 510 |
| Frame Top Tube | 612 | 637 | 665 | 688 |
| Frame Reach | 455 | 480 | 505 | 525 |
| Frame Stack | 632 | 632 | 641 | 655 |
| Frame Head Tube | 115 | 115 | 125 | 140 |
| Frame Head Angle | 65° | 65° | 65° | 65° |
| Frame Seat Angle | 76° | 76° | 76° | 76° |
| Frame Chainstay | 465 | 465 | 465 | 465 |
| Frame BB Drop | 25 | 25 | 25 | 25 |
| Frame Wheel Base | 1250 | 1275 | 1304 | 1330 |
| Fork Offset | 43 | 43 | 43 | 43 |
| Fork Travel | 160 | 160 | 160 | 160 |
| Standover | 794 | 794 | 793 | 793 |
| Stem Length | ||||
| Handle Bar Width |
