Saracen Ariel 50-E Pro
Out of stock
£5,499.99
More from
Saracen Ariel 50-E Pro
Enduro approved, rally ready and with a bit of a boost, ready to go up, down and across wherever you might point it. A Fox Float X2 Performance shock sits inside our aluminium frame, delivering 150mm of travel and giving assured performance when the going gets rough.

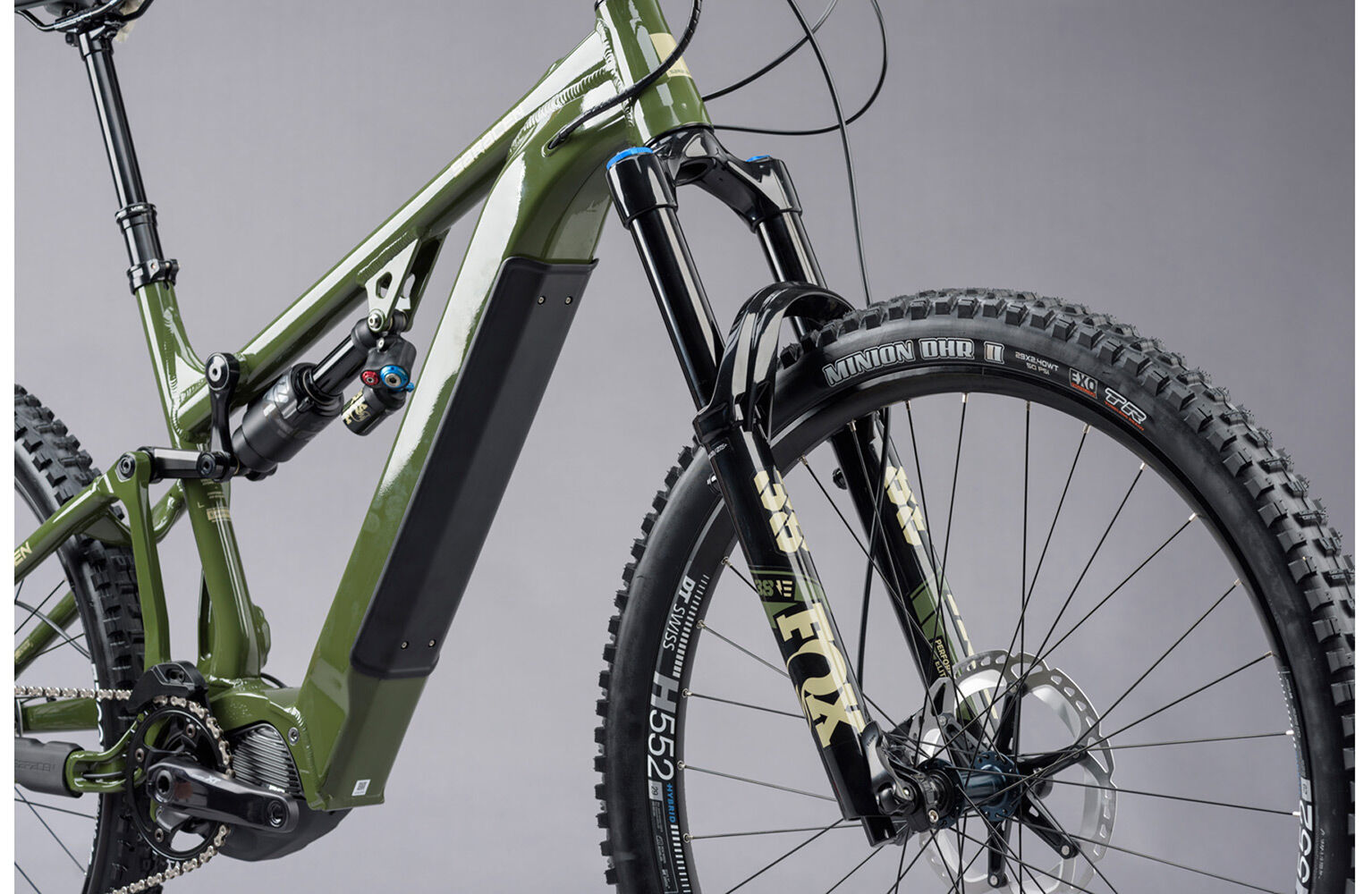

Up front the E-Bike specific Fox 38-E Performance Elite fork features a lighter compression tune, which Fox have found suits the characteristics of E-Bikes better than a regular 38. Of course, you'll get all the benefits of the regular 38 fork with the E-Bike version; including phenomenal stiffness, huge adjustment through low and high speed rebound and compression, and the all new bleed valves; all of which add up to make it a great enduro fork.

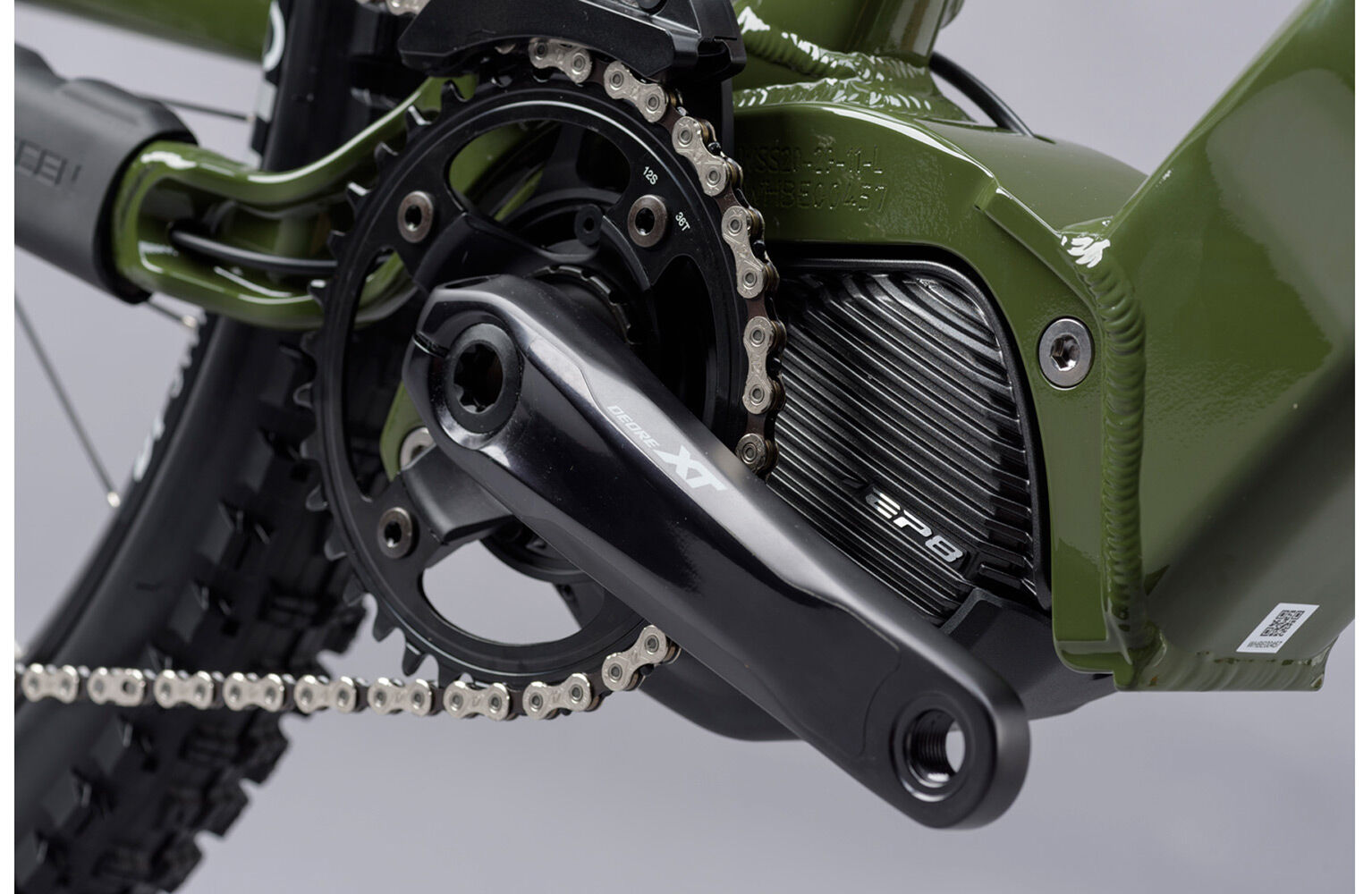

Powering the bike is Shimano's EP8. Their latest drive unit is housed inside a lightweight magnesium body providing 85NM of torque. But power is nothing without control and Shimano provide a huge range of user-customisation so you can get the best ride out on the trail. Whether it's choosing between the amount of assistance on the fly using the handlebar mounted controls, or using the E-Tube app to fine-tune the balance between power and torque, Shimano's EP8 system is totally integrated and allows you to find the perfect combination every time.

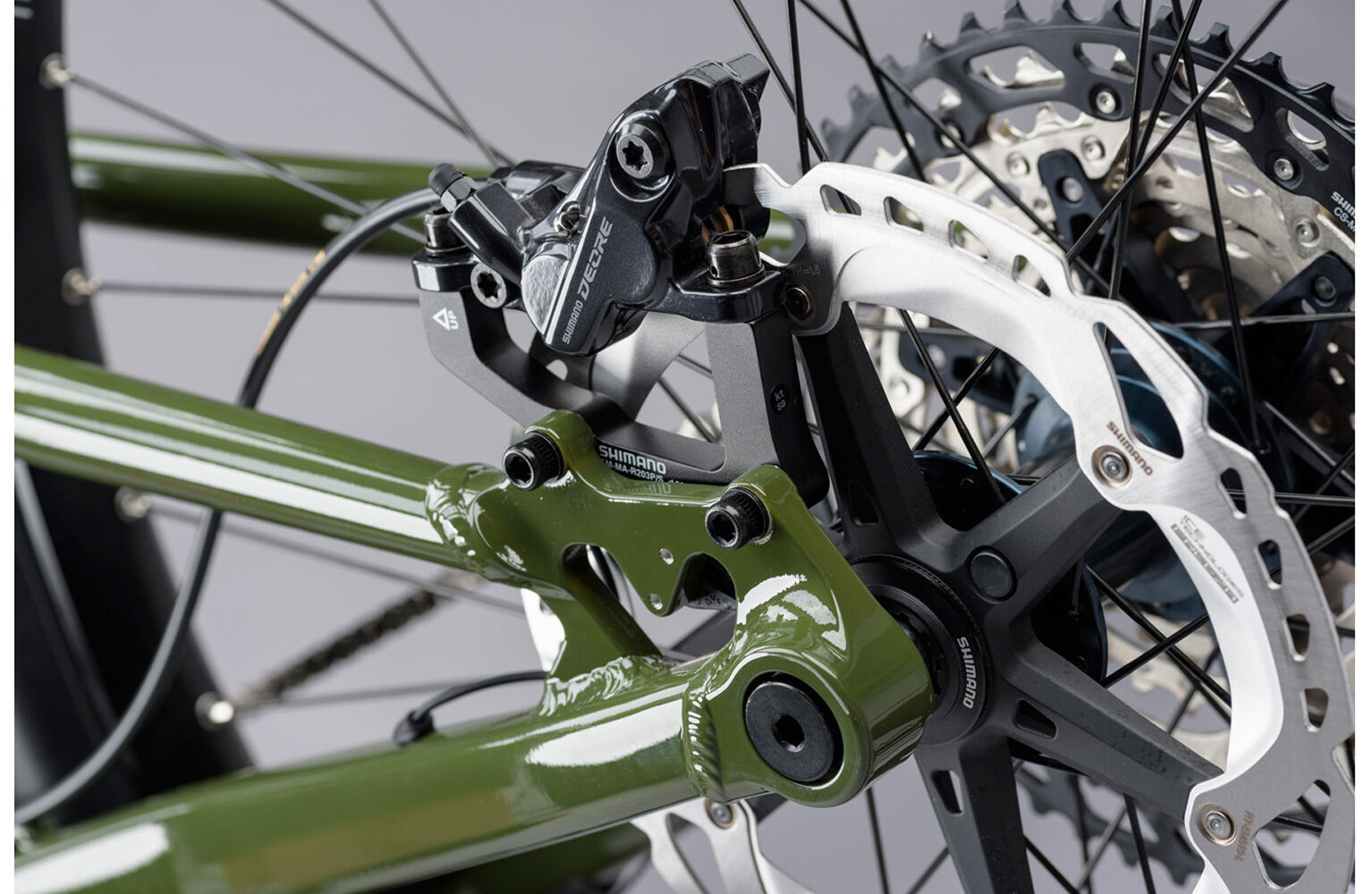

Once your settings are dialled in and you hit the trials, you'll notice it's also a quieter experience, with an integrated 504Wh battery providing an even greater range for those epic rides. The drivetrain is provided with a mix of Shimano's capable Deore, SLX and XT components, while braking is handled by four-piston Deore callipers for extra power. DT Swiss H552 rims feature a 30mm internal perfectly supporting the Maxxis Minion DHRII tyres. Our small and medium bikes come with mixed wheel size, while the large and extra large utilise the full 29er setup. RaceFace components finish the build, matched to a KS Rage 150mm dropper post.
Battery Type :
Fully intergrated BT-E8035 / 504Wh
Bottom Bracket :
N/A (Built into Motor)
Max Tyre Size :
29 x 2.6
Brakes :
Shimano M6120 203/203mm
Cassette Freewheel :
Shimano M7100 / 12 speed / 10-51T
Chain :
KMC E12
Chain Set :
Shimano FC-EM600 / 34T / 165mm
Charger :
Shimano STEPS EC-E6000
Handlebars :
Raceface Atlas 35 / 820mm Wide / 35mm Rise / 35mm Bar Bore
Headset :
Prestine PT-F13
Hubs :
Shimano HB-M7110 32h 15 x 110 Front / Shimano FH-M7130 32h 12 x 157 Rear / Centre-Lock rotor fixing
Motor :
Shimano EP-800 / Mid ship position / assistance up to 25Km/h
Rear Derailleur :
Shimano XT M8100 / 12 Speed
Rear Shock :
Fox Float X2 Performance / HSC / LSC / HSR / LSR / 2 position adjust / 230 x 65
Rear Suspension Travel :
150 mm
Rims :
DT Swiss H552 / 32H / 29" Front / 29" Rear (Sizes LG / XL) 29" Front / 27.5" Rear (Sizes SM / MD)
Saddle :
Saracen Custom CrMo MTB
Seat Post :
KS Rage I / 150mm travel / internal cable routing / 30.9mm / Westy Remote (125mm on S size)
Shifters :
Shimano SLX M7100 / 1 x 12 Speed
Spokes :
Double-butted stainless steel
Stem :
Raceface Chester 35 / 40mm / A Head / 0 Degree Rise / 35mm Clamp
Tyres :
Maxxis Minion DHRII / EXO / TR / 29 x 2.4 Front & Rear (Sizes LG / XL) / 29 x 2.4 Front / 27.5 x 2.4 Rear (Sizes SM / MD)
Battery Integration :
Internal
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
SMALL
- 154 to 172
MEDIUM
- 170 to 180
LARGE
- 178 to 186
X-LARGE
- 184 to 196
| Frame Size | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| Stem Length plus Reach | ||||
| Frame Seat Tube | 370 | 410 | 460 | 510 |
| Frame Top Tube | 612 | 637 | 665 | 688 |
| Frame Reach | 455 | 480 | 505 | 525 |
| Frame Stack | 632 | 632 | 641 | 655 |
| Frame Head Tube | 115 | 115 | 125 | 140 |
| Frame Head Angle | 65° | 65° | 65° | 65° |
| Frame Seat Angle | 76° | 76° | 76° | 76° |
| Frame Chainstay | 465 | 465 | 465 | 465 |
| Frame BB Drop | 25 | 25 | 25 | 25 |
| Frame Wheel Base | 1250 | 1275 | 1304 | 1330 |
| Fork Offset | 43 | 43 | 43 | 43 |
| Fork Travel | 160 | 160 | 160 | 160 |
| Standover | 794 | 794 | 793 | 793 |
| Stem Length | ||||
| Handle Bar Width |
| Frame Size | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| Stem Length plus Reach | ||||
| Frame Seat Tube | 370 | 410 | 460 | 510 |
| Frame Top Tube | 612 | 637 | 665 | 688 |
| Frame Reach | 455 | 480 | 505 | 525 |
| Frame Stack | 632 | 632 | 641 | 655 |
| Frame Head Tube | 115 | 115 | 125 | 140 |
| Frame Head Angle | 65° | 65° | 65° | 65° |
| Frame Seat Angle | 76° | 76° | 76° | 76° |
| Frame Chainstay | 465 | 465 | 465 | 465 |
| Frame BB Drop | 25 | 25 | 25 | 25 |
| Frame Wheel Base | 1250 | 1275 | 1304 | 1330 |
| Fork Offset | 43 | 43 | 43 | 43 |
| Fork Travel | 160 | 160 | 160 | 160 |
| Standover | 794 | 794 | 793 | 793 |
| Stem Length | ||||
| Handle Bar Width |
