Saracen Ariel 50-E Elite
Out of stock
£6,499.99
More from
Saracen Ariel 50-E Elite
Forget the haters, the new Ariel E is probably going to be the most fun you'll ever have on a bike! Power to the top and blast back down; whether it's bike park laps or a point-to-point epic, the all-new Ariel E is ready to take you there, with a massive grin on your face. Our all-new aluminium frameset delivers 150mm of travel and is matched to the downhill-proven Fox Factory DHX coil shock for the ultimate in ground-hugging traction and smooth riding over the roughest terrain.

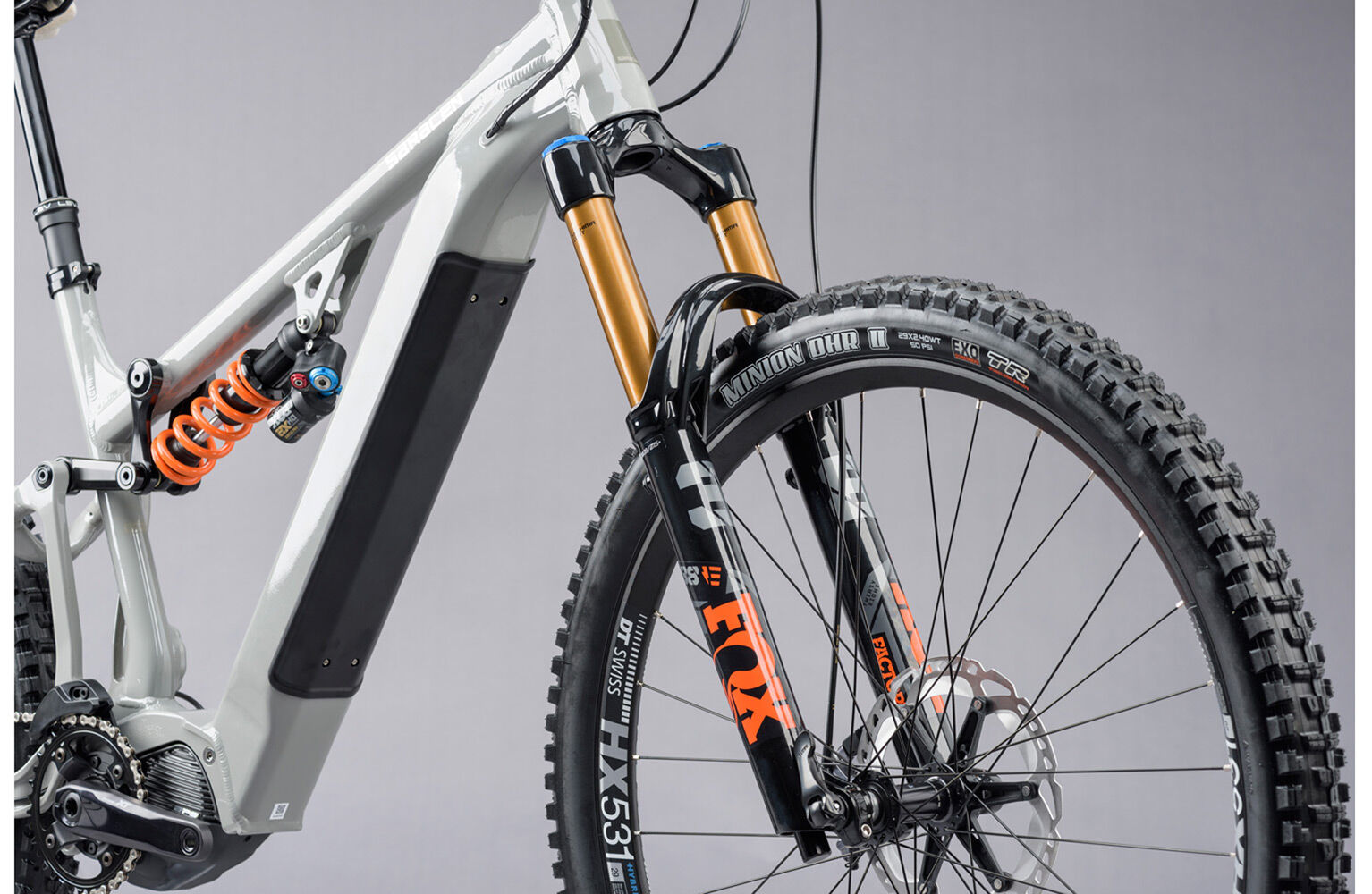

Up front we have specified the Fox 38-E Factory fork, which delivers 160mm of the smoothest, Kashima coated travel out there. This E-Bike specific model features a lighter compression tune, which Fox have found suits the characteristics of E-Bikes better than a regular 38. Of course, you'll get all the benefits of the regular 38 fork with the E-Bike version ‐ including phenomenal stiffness, huge adjustment through low and high speed rebound and compression, and the all new bleed valves ‐ all of which add up to make it the ultimate enduro fork.
Powering the bike is Shimano's EP8. Their latest drive unit is housed inside a lightweight magnesium body providing 85NM of torque. But power is nothing without control and Shimano provide a huge range of user-customisation so you can get the best ride out on the trail. Whether it's choosing between the amount of assistance on the fly using the handlebar mounted controls, or using the E-Tube app to fine-tune the balance between power and torque, Shimano's EP8 system is totally integrated and allows you to find the perfect combination every time.
Once your settings are dialled in and you hit the trials, you'll notice it's also a quieter experience, with an integrated 504Wh battery providing an even greater range for those epic rides. We've completed the top-of-the-line Ariel 50E Elite with Shimano's XT 12-speed groupset and 4-piston brakes, which is the benchmark for all-round trail riding. DT Swiss HX531 rims are another E-Bike specific component, with a 30mm internal perfectly supporting the Maxxis Minion DHRII tyres. Our small and medium bikes come with mixed wheel size, while the large and extra large utilise the full 29er setup. RaceFace components finish the build, matched to a KS LEV Integra 150mm dropper post.
Battery Type :
Fully intergrated BT-E8035 / 504Wh
Bottom Bracket :
N/A (Built into Motor)
Max Tyre Size :
29 x 2.6

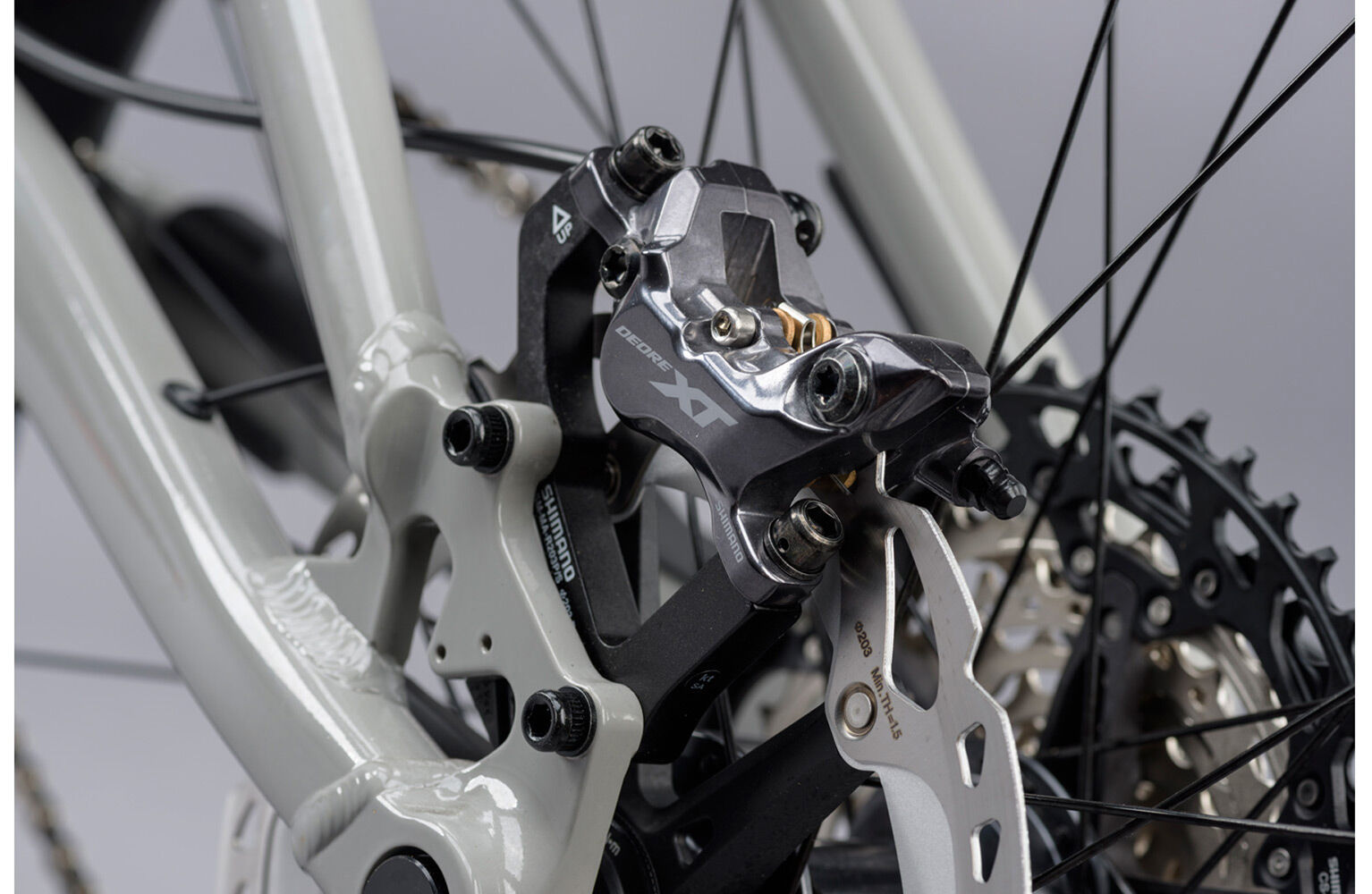

Brakes :
Shimano M8120 203/203mm
Cassette Freewheel :
Shimano M8100 / 12 speed / 10-51T
Chain :
KMC E12
Chain Set :
Shimano XT FC-M8150 / 34T / 165mm
Charger :
Shimano STEPS EC-E6000
Handlebars :
Raceface Next R Carbon 35 / 780mm Wide / 35mm Rise / 35mm Bar Bore
Headset :
Prestine PT-F13
Hubs :
Shimano HB-M8110 32h 15 x 110 Front / Shimano FH-M8130 32h 12 x 157 Rear / Centre-Lock rotor fixing
Motor :
Shimano EP-800 / Mid ship position / assistance up to 25Km/h
Rear Derailleur :
Shimano XT M8100 / 12 Speed
Rear Shock :
Fox DHX2 Factory / 2 position adjust / SLS Spring / 230 x 65
Rear Suspension Travel :
150 mm
Rims :
DT Swiss HX 531 / 32H / 29" Front / 29" Rear (Sizes LG / XL) 29" Front / 27.5" Rear (Sizes SM / MD)
Saddle :
Saracen Custom CrMo MTB
Seat Post :
KS LEV Integra / 150mm travel / internal cable routing / 30.9mm / Southpaw Remote (125mm on S size)

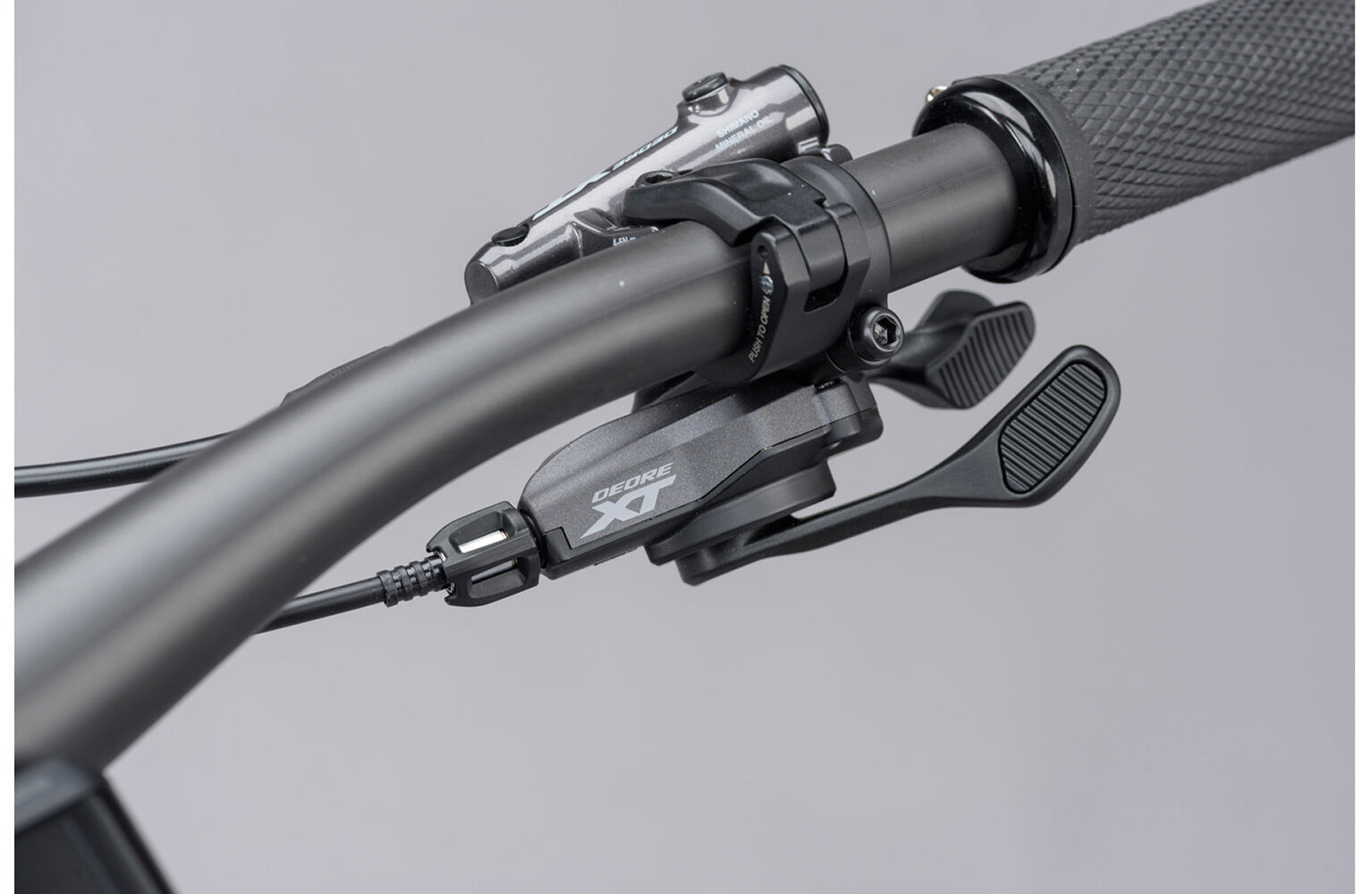

Shifters :
Shimano XT M8100 / 1 x 12 Speed
Spokes :
Double-butted stainless steel

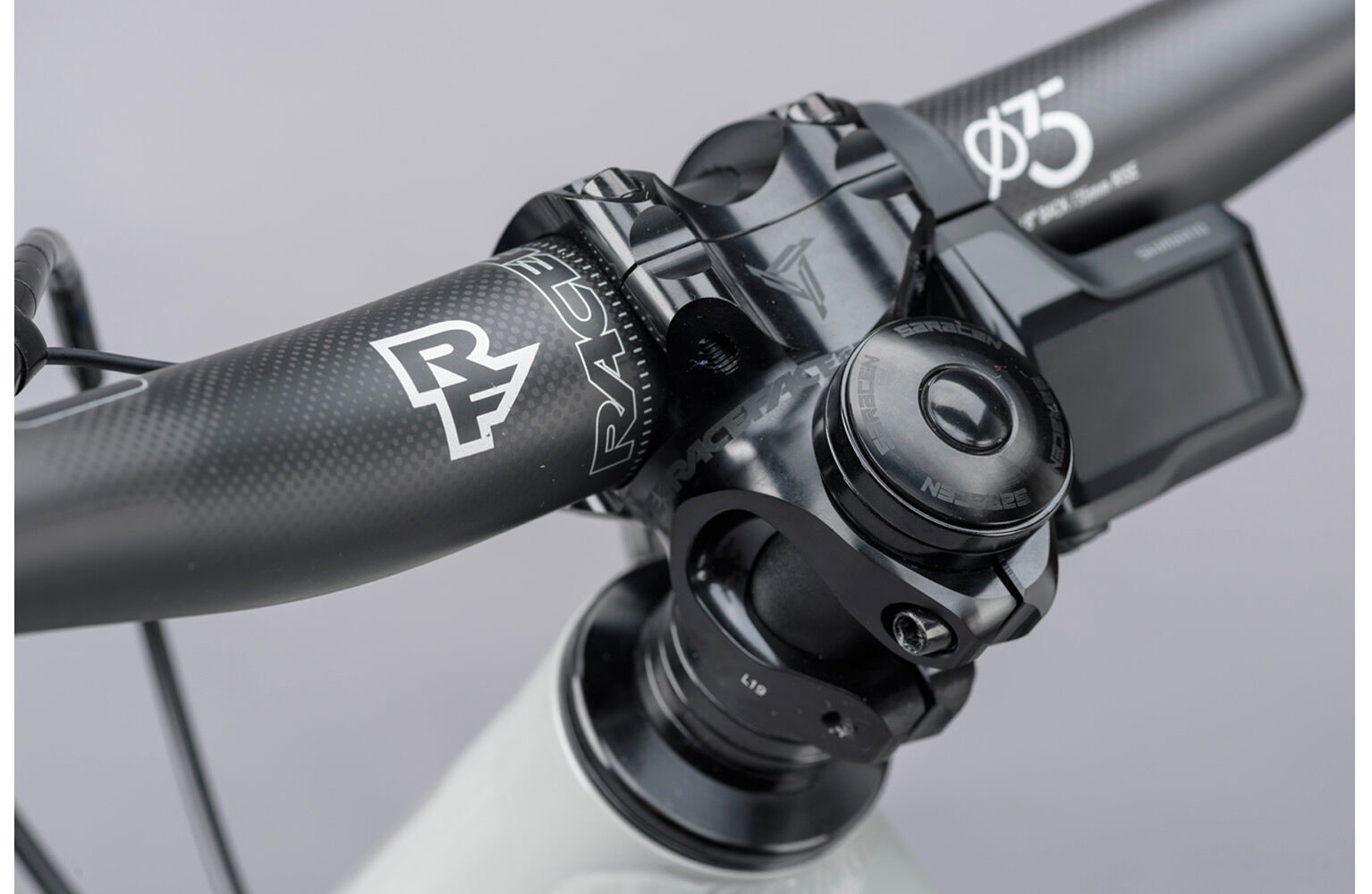

Stem :
Raceface Turbine R 35 / 40mm / A Head / 0 Degree Rise / 35mm Clamp
Tyres :
Maxxis Minion DHRII / EXO / TR / 29 x 2.4 Front & Rear (Sizes LG / XL) / 29 x 2.4 Front / 27.5 x 2.4 Rear (Sizes SM / MD)
Battery Integration :
Internal
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
SMALL
- 154 to 172
MEDIUM
- 170 to 180
LARGE
- 178 to 186
X-LARGE
- 184 to 196
| Frame Size | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| Stem Length plus Reach | ||||
| Frame Seat Tube | 370 | 410 | 460 | 510 |
| Frame Top Tube | 612 | 637 | 665 | 688 |
| Frame Reach | 455 | 480 | 505 | 525 |
| Frame Stack | 632 | 632 | 641 | 655 |
| Frame Head Tube | 115 | 115 | 125 | 140 |
| Frame Head Angle | 65° | 65° | 65° | 65° |
| Frame Seat Angle | 76° | 76° | 76° | 76° |
| Frame Chainstay | 465 | 465 | 465 | 465 |
| Frame BB Drop | 25 | 25 | 25 | 25 |
| Frame Wheel Base | 1250 | 1275 | 1304 | 1330 |
| Fork Offset | 43 | 43 | 43 | 43 |
| Fork Travel | 160 | 160 | 160 | 160 |
| Standover | 794 | 794 | 793 | 793 |
| Stem Length | ||||
| Handle Bar Width |
| Frame Size | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| Stem Length plus Reach | ||||
| Frame Seat Tube | 370 | 410 | 460 | 510 |
| Frame Top Tube | 612 | 637 | 665 | 688 |
| Frame Reach | 455 | 480 | 505 | 525 |
| Frame Stack | 632 | 632 | 641 | 655 |
| Frame Head Tube | 115 | 115 | 125 | 140 |
| Frame Head Angle | 65° | 65° | 65° | 65° |
| Frame Seat Angle | 76° | 76° | 76° | 76° |
| Frame Chainstay | 465 | 465 | 465 | 465 |
| Frame BB Drop | 25 | 25 | 25 | 25 |
| Frame Wheel Base | 1250 | 1275 | 1304 | 1330 |
| Fork Offset | 43 | 43 | 43 | 43 |
| Fork Travel | 160 | 160 | 160 | 160 |
| Standover | 794 | 794 | 793 | 793 |
| Stem Length | ||||
| Handle Bar Width |
