Ridgeback Panorama
- The complete cycle touring package, the Ridgeback Panorama is built to be loaded with luggage and cover vast distances.
The Reynolds 725 frame and chromoly fork provide superb ride quality - essential when travelling long periods over rough roads.
The attention to detail continues with the specification with gearing provided by a mix of Shimano's smooth and reliable Alivio and Sora components.

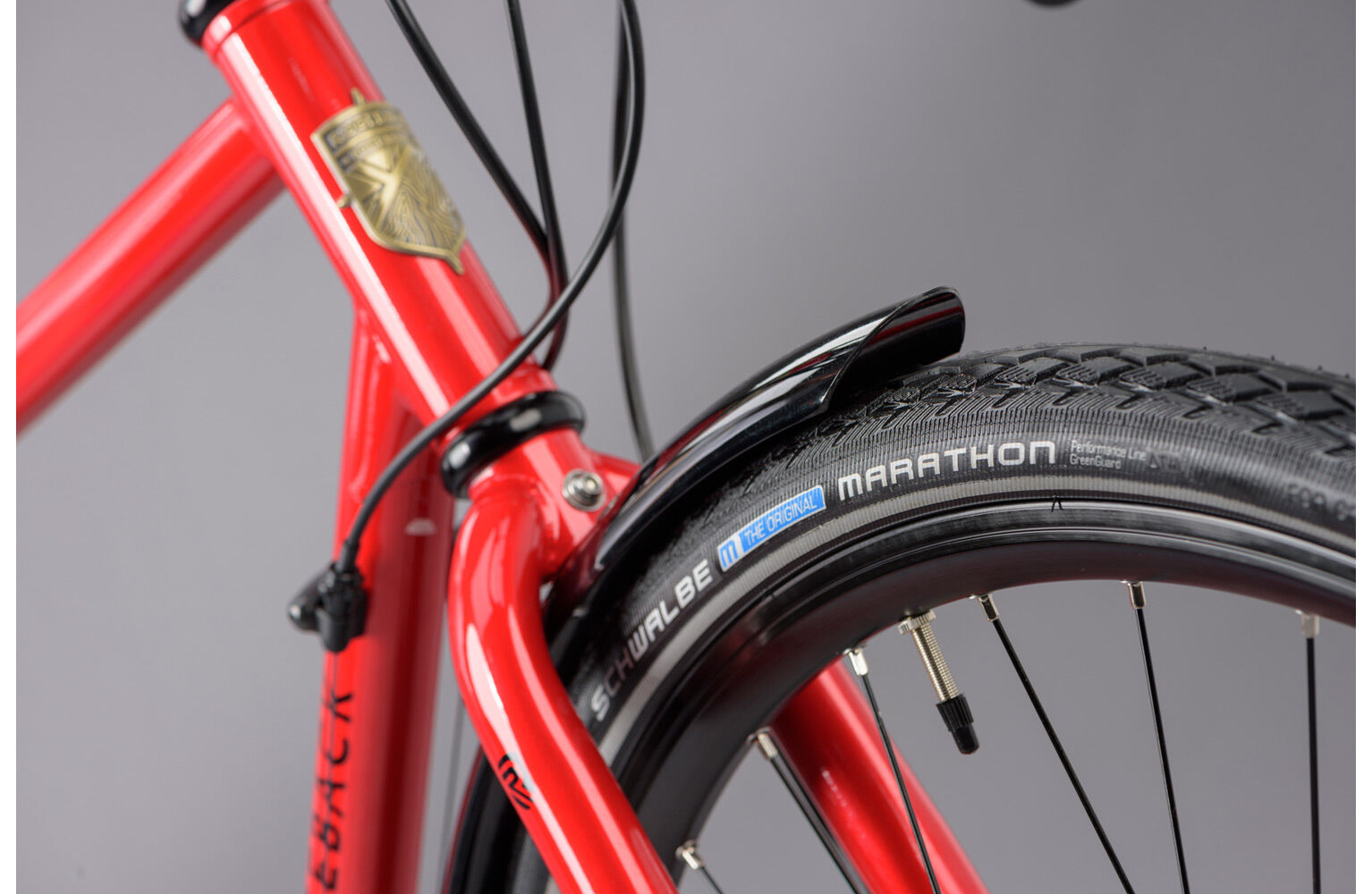

A triple chainset and wide 11-34 cassette provide ample gearing when climbing fully laden and Schwable's Marathon tyres are a stalwart for their durability and puncture protection.

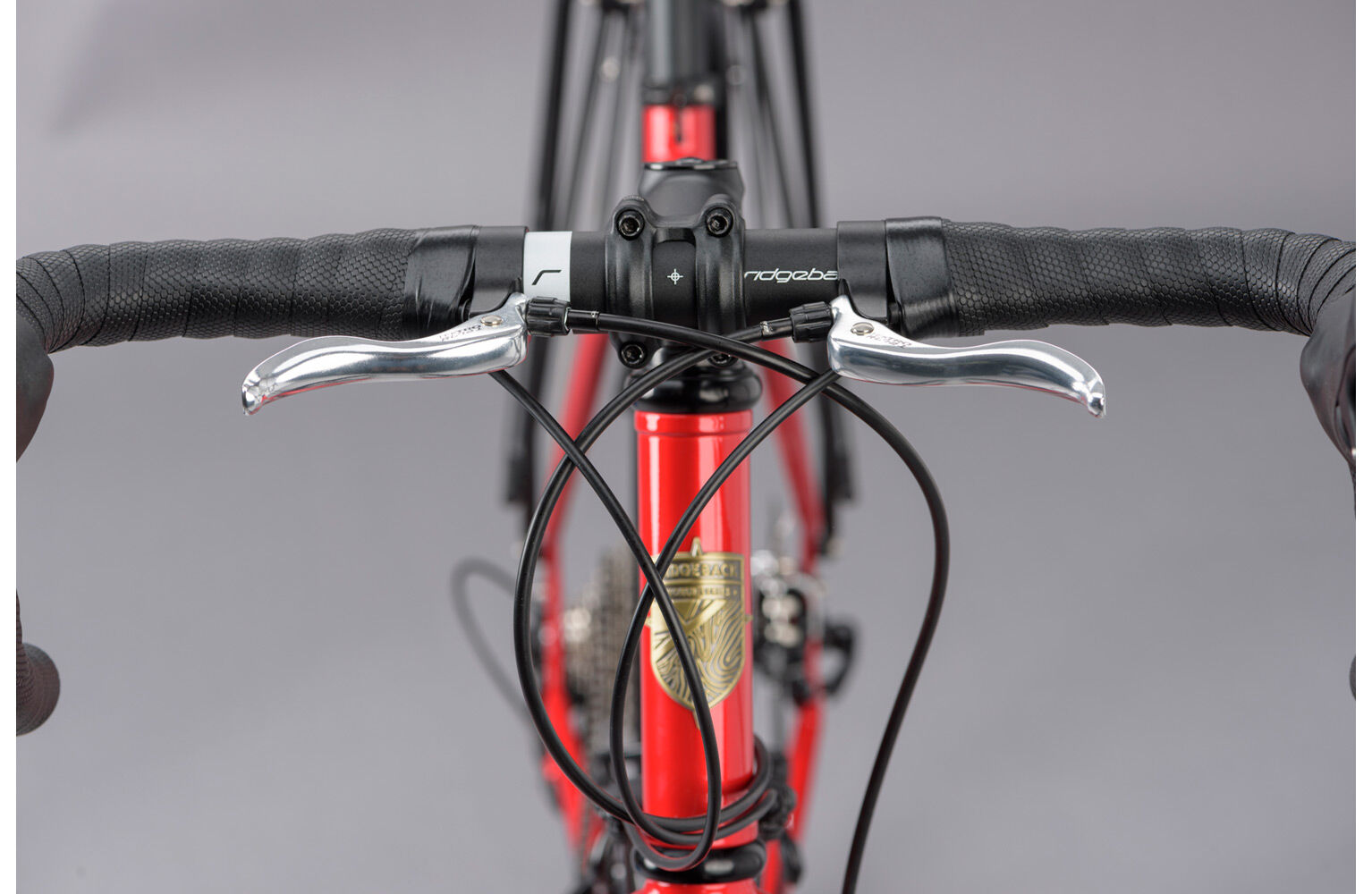

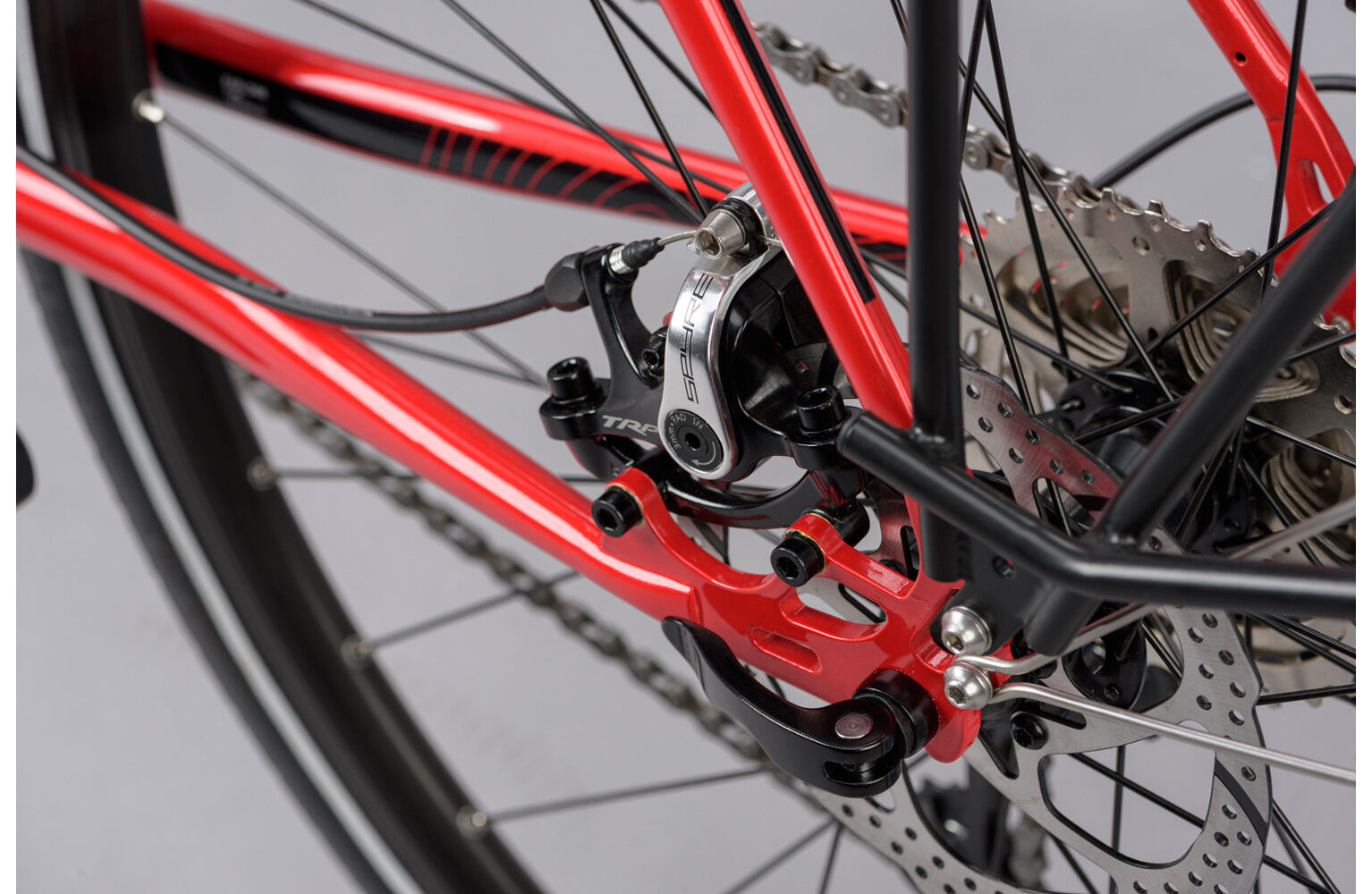

We have paired the TRP Spyre cable disc brakes with bar-top levers, allowing another hand position with the convenience of the brakes at your fingertips.
Touring essentials are taken care of with the included rear rack, mudguards and three bottle cages.
Weight - 14.59kg
Ridgeback has been making bikes for all kinds of riders since 1983, and understands what an important part bikes play in the lives of many, many people in the UK. From flat bar mountain and touring bikes to comfortable commuters and children’s bikes all the way to E-Bikes, Ridgeback leads the way in making practical and fun bikes designed to fit in with your lifestyle.
From the UK’s first MTB in 1983, through the Roxy, the introduction of the Urban series in 1998, the Genesis Day 03 flat bar road bike in 2001, the Dual Track 29er and the 25th anniversary R25, Ridgeback Bikes have been helping people get out and about for 40 years now.
For the modern Ridgeback range, E-Bikes are absolutely the present and the future. Cycling isn’t always about fun or fitness, sometimes (or even most of the time) it’s an incredibly powerful tool for just getting around without using a car. For that type of urban mobility, E-Bikes are the perfect solution which is why the Ridgeback range contains multiple different models at different price points so that you have a choice no matter where you are or where you need to get to.
But that’s not to say that Ridgeback has ignored the non-E-Bike, not at all. The range still has classic, powered bikes from £400 all the way up to £1,199.99, making sure there is a choice for every rider, no matter their budget. The other fundamental is to make bikes that complement lifestyle, not hinder it. That means every Ridgeback uses quality parts to make sure that they keep going for longer and wont let you down when you need them most.
The other fundamental part of Ridgeback bikes is the kids bikes. It starts with the Scoot and Scoot XL balance bikes that are designed to teach kids the fundamentals of bike riding without throwing pedalling into the mix and goes all the way up to the almost-adult-sized Dimension 26, Ridgeback’s kids bikes are proper bikes, not toys. That means they’re made to withstand the beating that kids can inflict and come back ready for more, they wont need a trip to the bike shop every 5mins because that’s doesn’t benefit anyone.
Bottom Bracket :
Shimano BB-ES300
Brakes :
TRP Spyre Mechanical Disc Brake
Cassette Freewheel :
Shimano CS-HG400 11-34T
Chain :
KMC X9
Chain Set :
Shimano FC-T4060 48-36-26T
Front Derailleur :
Shimano Sora FD-R3030
Grip Tape :
Ridgeback
Headset :
Prestine PT-1767D
Hubs :
Formula DC20/DC22
Mudguard :
Fitted
Pedals :
FPD Road / Toe Clips
Rear Derailleur :
Shimano Alivio RD-M3100 9 speed
Rims :
Jalco DM25
Saddle :
Ridgeback Custom
Seat Post :
Alloy 27.2 x 350 mm
Shifters :
Shimano Sora ST-T3030
Spokes :
Steel 14 g
Tyres :
Shwalbe Marathon GG 700 x 35c
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
X-SMALL
- 156 to 164
SMALL
- 164 to 172
MEDIUM
- 171 to 179
LARGE
- 178 to 186
X-LARGE
- 185 to 193
| Frame Size | X-SMALL | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|---|
| Stem Length plus Reach | 456 | 465 | 486 | 506 | 526 |
| Frame Seat Tube | 480 | 500 | 530 | 550 | 580 |
| Frame Top Tube | 522 | 544 | 564 | 580 | 601 |
| Frame Reach | 366 | 375 | 386 | 396 | 406 |
| Frame Stack | 543 | 586 | 583 | 601 | 618 |
| Frame Head Tube | 105 | 130 | 145 | 165 | 180 |
| Frame Head Angle | 71° | 71.5° | 71.5° | 71.5° | 72° |
| Frame Seat Angle | 74° | 73.5° | 73° | 73° | 72.5° |
| Frame Chainstay | 450 | 450 | 450 | 450 | 450 |
| Frame BB Drop | 73 | 73 | 73 | 73 | 73 |
| Frame Wheel Base | 1025 | 1023 | 1055 | 1071 | 1081 |
| Fork Offset | |||||
| Fork Travel | |||||
| Standover | |||||
| Stem Length | 90 | 90 | 100 | 110 | 120 |
| Handle Bar Width | 400 | 420 | 420 | 440 | 440 |
| Frame Size | X-SMALL | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|---|
| Stem Length plus Reach | 456 | 465 | 486 | 506 | 526 |
| Frame Seat Tube | 480 | 500 | 530 | 550 | 580 |
| Frame Top Tube | 522 | 544 | 564 | 580 | 601 |
| Frame Reach | 366 | 375 | 386 | 396 | 406 |
| Frame Stack | 543 | 586 | 583 | 601 | 618 |
| Frame Head Tube | 105 | 130 | 145 | 165 | 180 |
| Frame Head Angle | 71° | 71.5° | 71.5° | 71.5° | 72° |
| Frame Seat Angle | 74° | 73.5° | 73° | 73° | 72.5° |
| Frame Chainstay | 450 | 450 | 450 | 450 | 450 |
| Frame BB Drop | 73 | 73 | 73 | 73 | 73 |
| Frame Wheel Base | 1025 | 1023 | 1055 | 1071 | 1081 |
| Fork Offset | |||||
| Fork Travel | |||||
| Standover | |||||
| Stem Length | 90 | 90 | 100 | 110 | 120 |
| Handle Bar Width | 400 | 420 | 420 | 440 | 440 |
